Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment

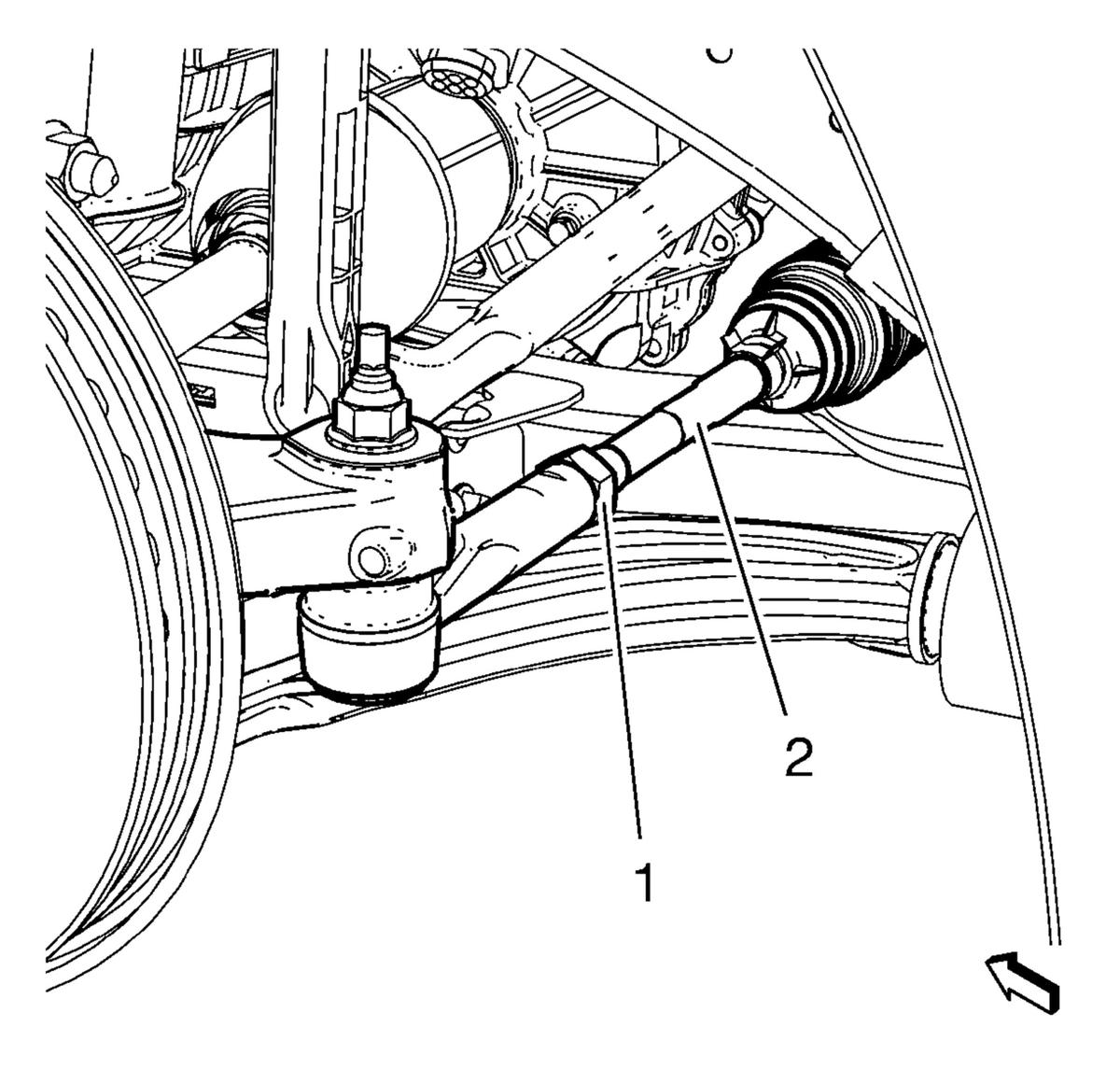

Fig 1: Inner Tie Rod And Jam Nut

GM2028016

Courtesy of GENERAL MOTORS COMPANY

Ensure that the steering wheel is set in a straight ahead position.
Loosen the tie rod jam nut (1).
Adjust the toe to specification by turning the inner tie rod (2). Refer to Wheel Alignment Specifications .

CAUTION:

Refer to Fastener Caution .

Tighten the tie rod jam nut (1) to 60 N.m (44 lb ft).
