Communication Interface Module Replacement

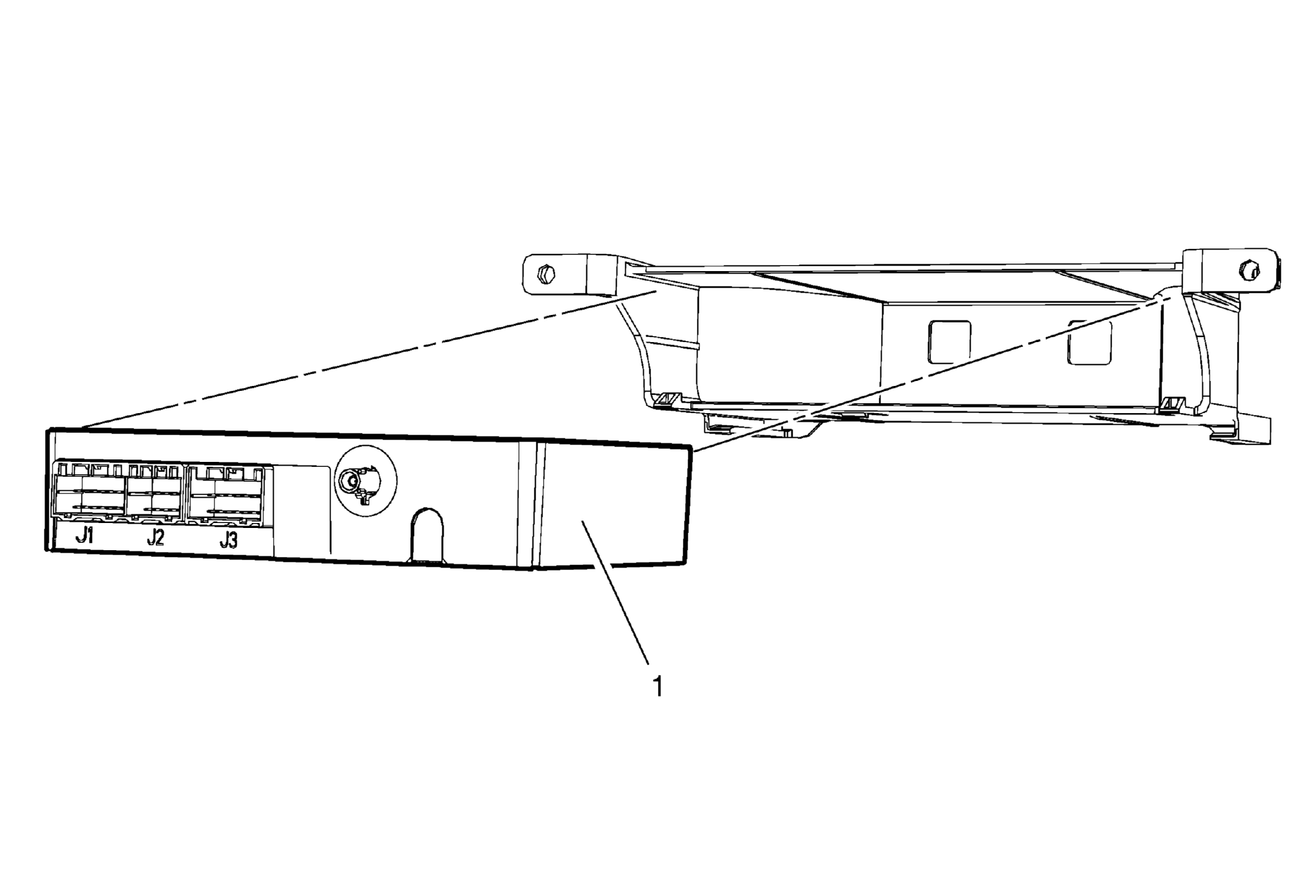

Fig 1: Communication Interface Module

GM2743369

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove the radio control assembly. Refer to Radio Control Assembly Replacement .

1

Communication Interface Module

Procedure

Release the bracket tabs and slide the module out of bracket.
Disconnect the electrical connections.
If replacing the communication interface module be sure to transfer bluetooth antenna, if equipped.
For programming and set up procedures, refer to Control Module References .
