Remote Control Door Lock Receiver Replacement (with Sunroof)

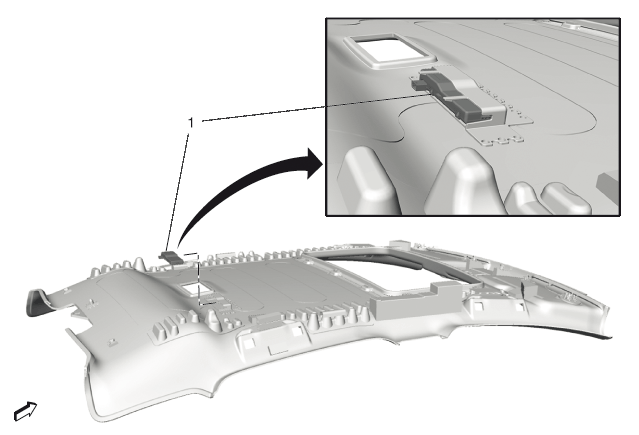

Fig 1: Remote Control Door Lock Receiver (with Sunroof)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Headlining Trim Panel Replacement (with Sunroof)Headlining Trim Panel Replacement (without Sunroof)
<p01>	Remote Control Door Lock Receiver Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

<p01>

Remote Control Door Lock Receiver

Procedure
