Front Seat Heater Control Module Replacement

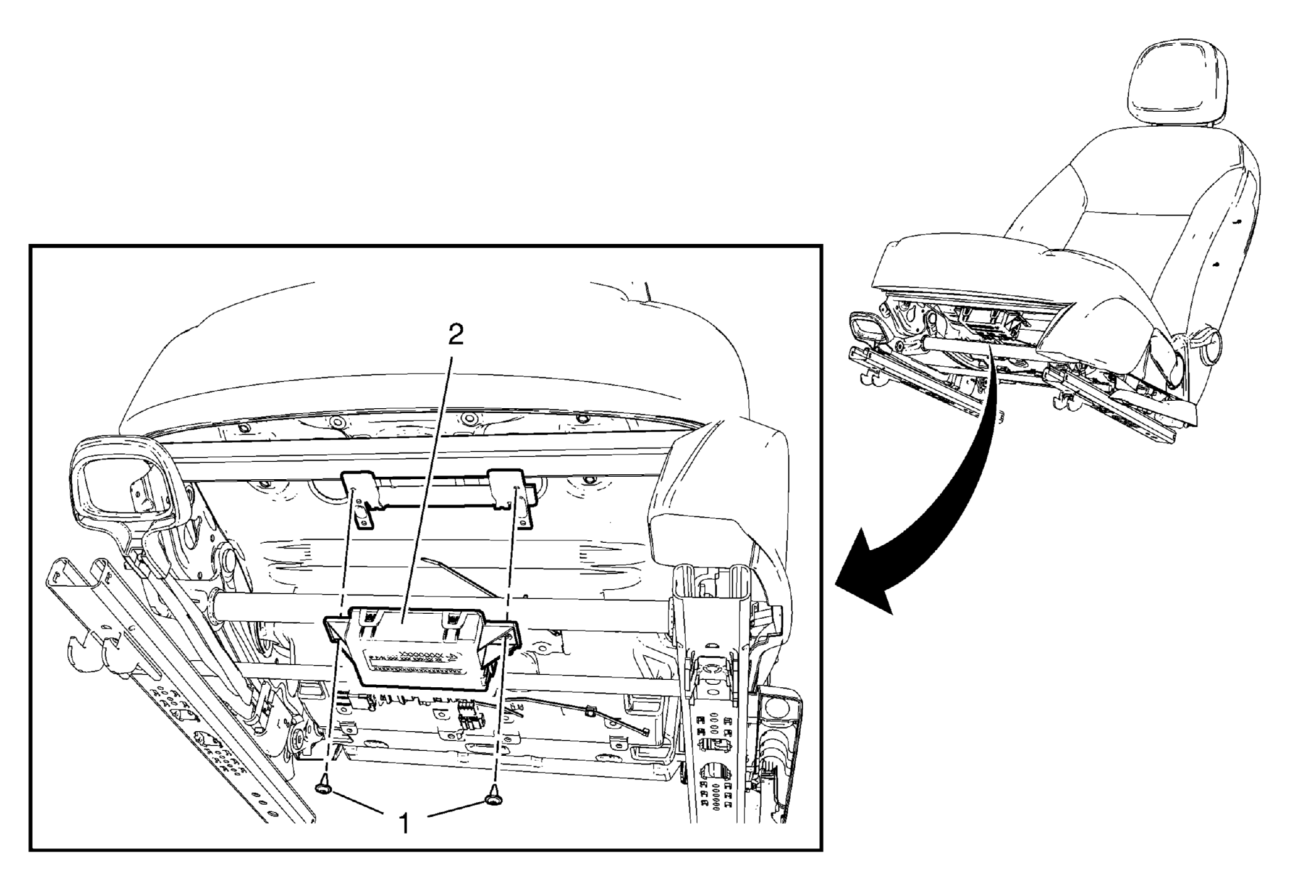

| Callout | Component Name |
|---|---|
| Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . |
|
| 1 | Front Seat Heater Control Module Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Procedure
Tighten 3 N.m (27 lb in) |
| 2 | Front Seat Heater Control Module |
