Installation Procedure

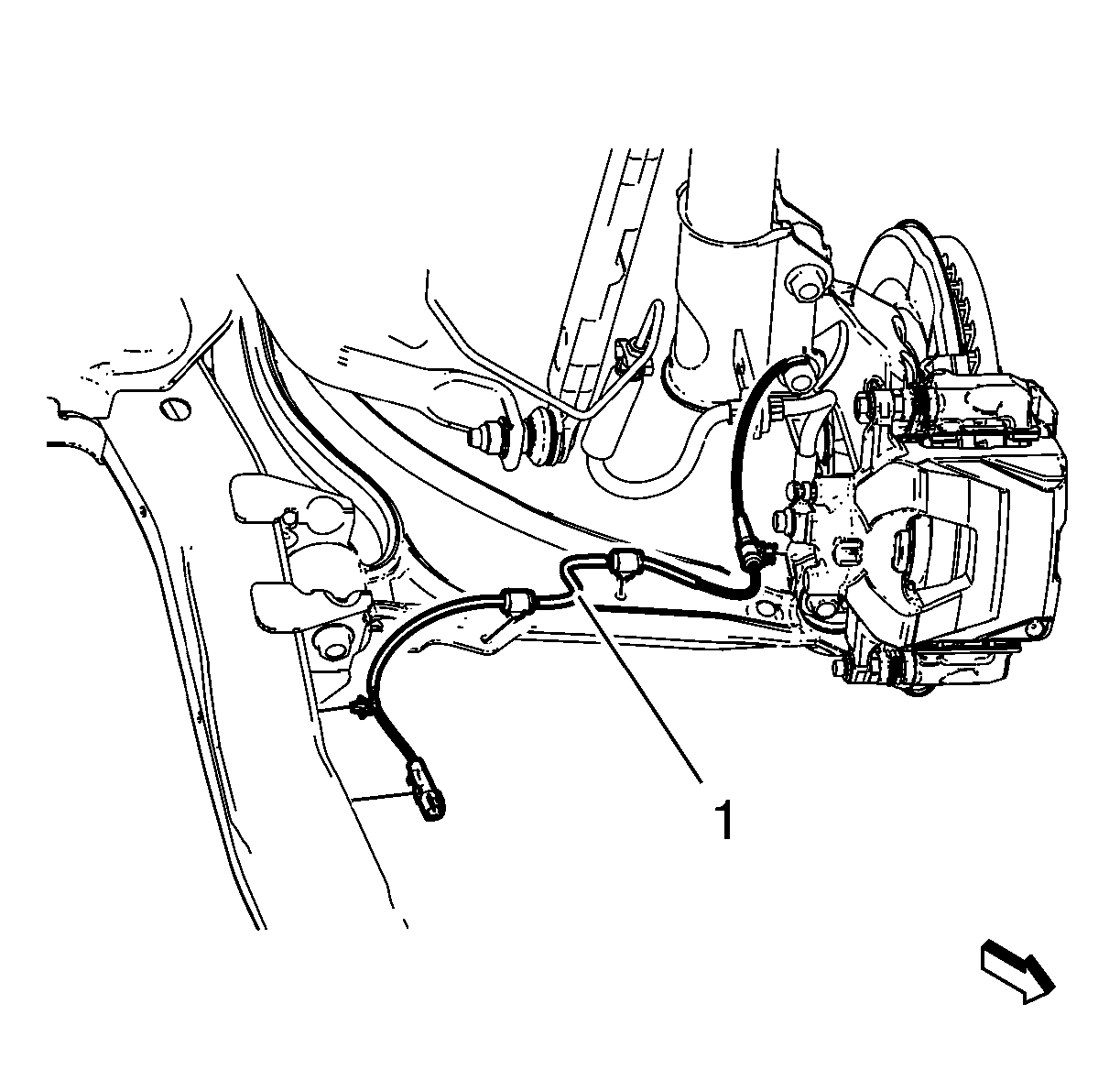

    Fig 1: Wheel Speed Sensor Wiring Harness
    GM2028088Courtesy of GENERAL MOTORS COMPANY
  1. Install the wheel speed sensor (1) to the vehicle.
  2. Connect the electrical connector.
  3. Install the wiring harness retainers to the frame.

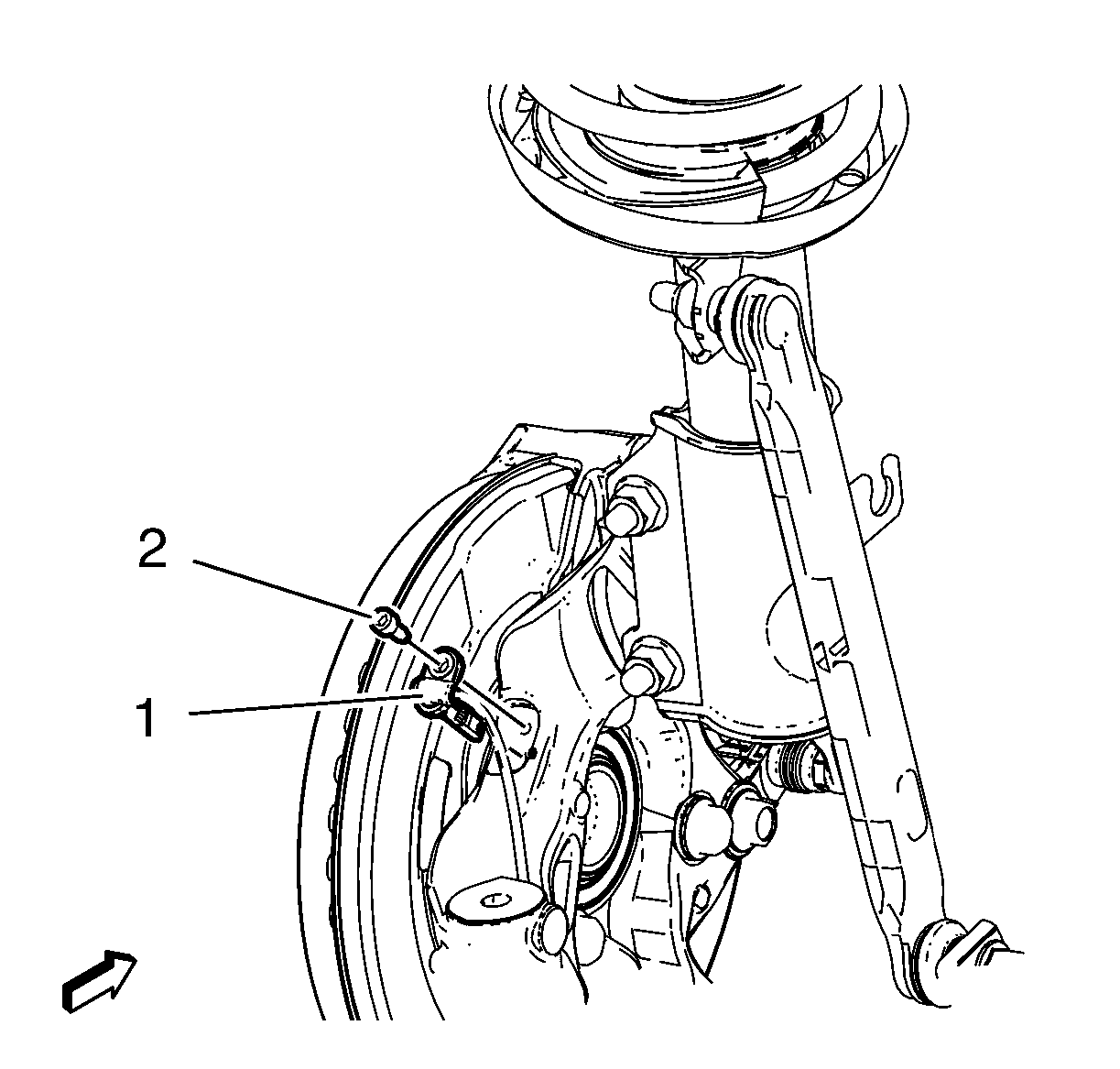

    4. Fig 2: Wheel Speed Sensor And Wheel Speed Sensor Screw
    GM2028087Courtesy of GENERAL MOTORS COMPANY
  4. Install the wheel speed sensor (1) to the steering knuckle.
    5. CAUTION:

    Refer to Fastener Caution .

  5. Install the wheel speed sensor screw (2) and tighten to 6 N.m (53 lb in).
  6. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
