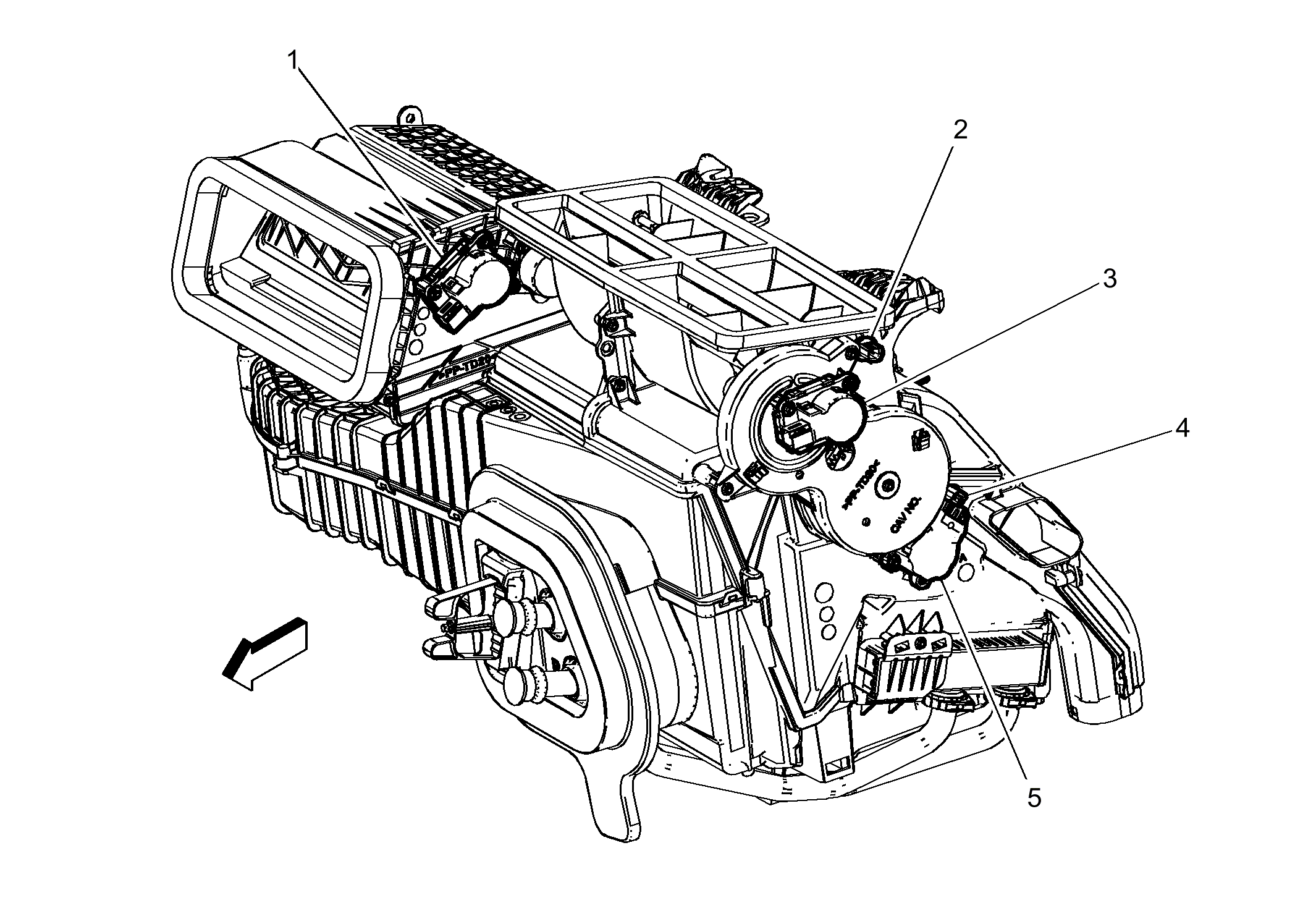

Left HVAC Components
Left HVAC Components
| Items |
|---|
| 1: M4 Air Inlet Door Actuator (C67 or CJ2) M4 Air Inlet Door Actuator |
| 2: B7H Air Temperature Sensor - Duct Left Upper (CJ2) B7H Air Temperature Sensor - Duct Left Upper |
| 3: M37 Mode Door Actuator (C67 or CJ2) M37 Mode Door Actuator |
| 4: B7D Air Temperature Sensor - Duct Left Lower (CJ2) B7D Air Temperature Sensor - Duct Left Lower |
| 5: M6L Air Temperature Door Actuator - Left (C67 or CJ2) M6 Air Temperature Door Actuator (C67) |
