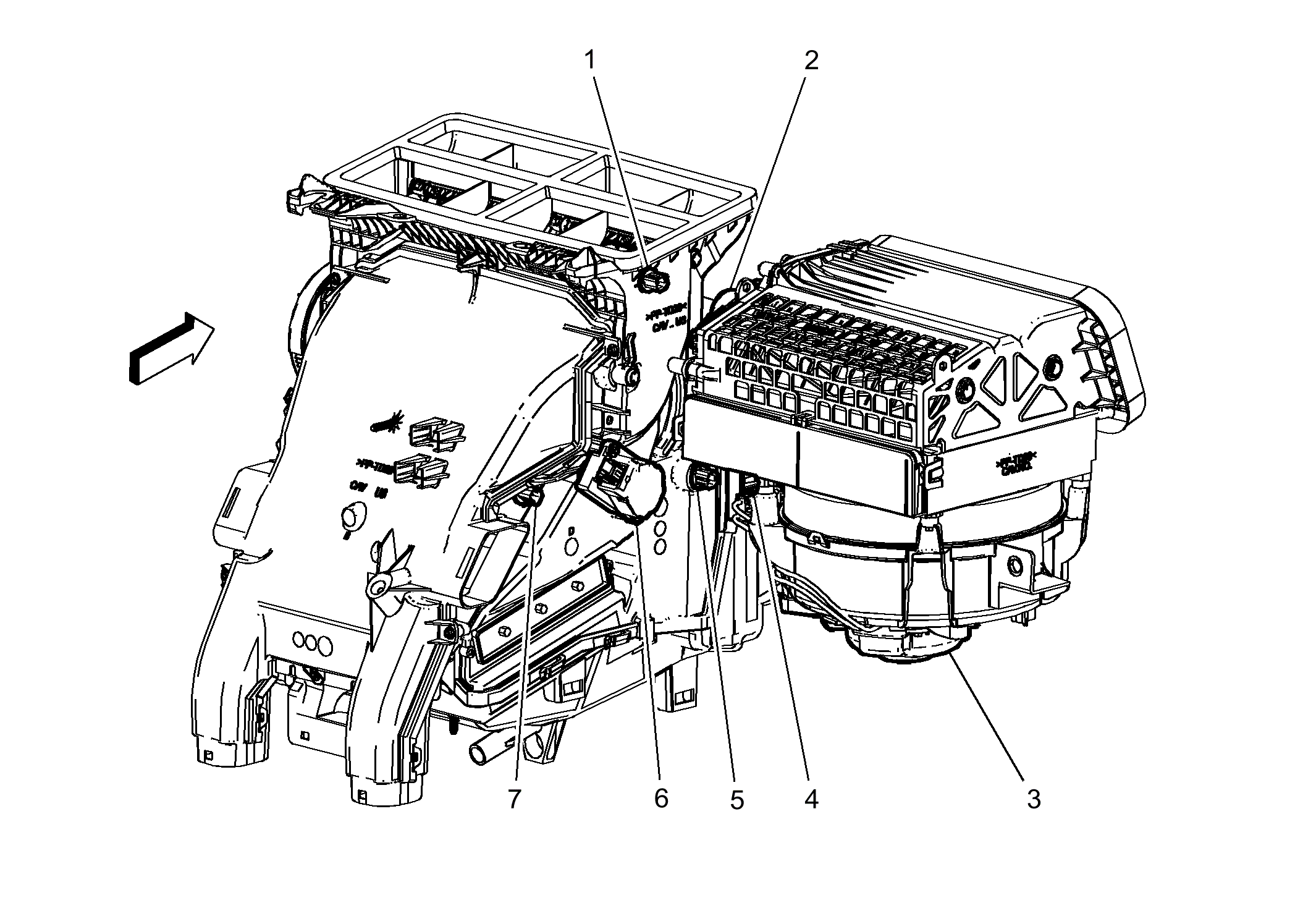

Right HVAC Components
Right HVAC Components
| Items |
|---|
| 1: B7H Air Temperature Sensor - Duct Left Upper (CJ2) B7H Air Temperature Sensor - Duct Left Upper |
| 2: M4 Air Inlet Door Actuator (C67 or CJ2) M4 Air Inlet Door Actuator |
| 3: M8 Blower Motor (C67 or CJ2) |
| 4: K8 Blower Motor Control Module K8 Blower Motor Control ModuleK8 Blower Motor Control Module X2 |
| 5: B39 A/C Evaporator Temperature Sensor (C67 or CJ2) B39 A/C Evaporator Temperature Sensor |
| 6: M6R Air Temperature Door Actuator - Right (C67 or CJ2) M6 Air Temperature Door Actuator (C67) |
| 7: B7J Air Temperature Sensor - Duct Right Upper (CJ2) B7J Air Temperature Sensor - Duct Right Upper |
