High Speed Bus 1

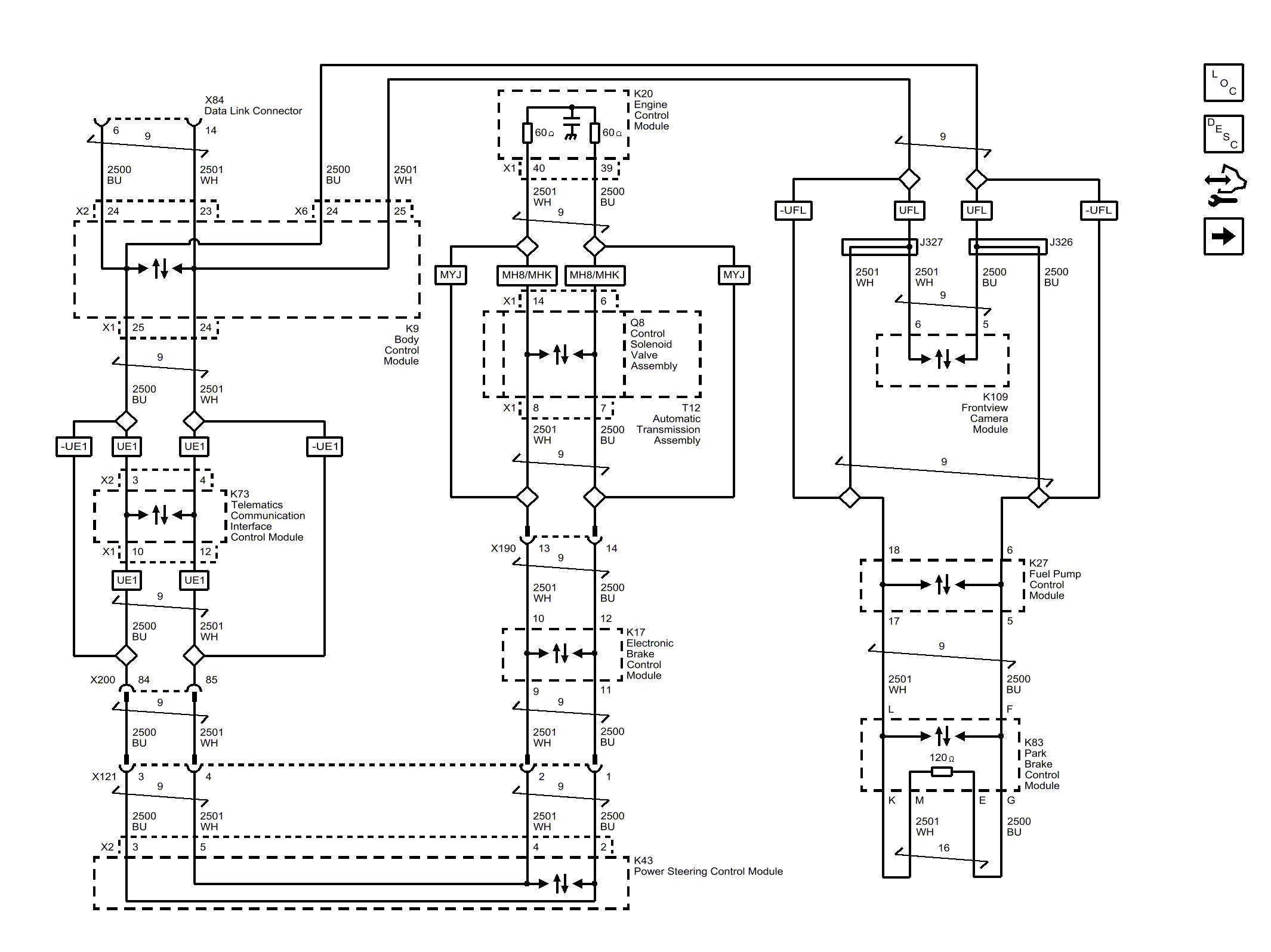

Fig 1: High Speed Bus 1
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
