Preliminary Procedures
Remove electronic power steering gear. Refer to Steering Gear Replacement . |
| 1 |

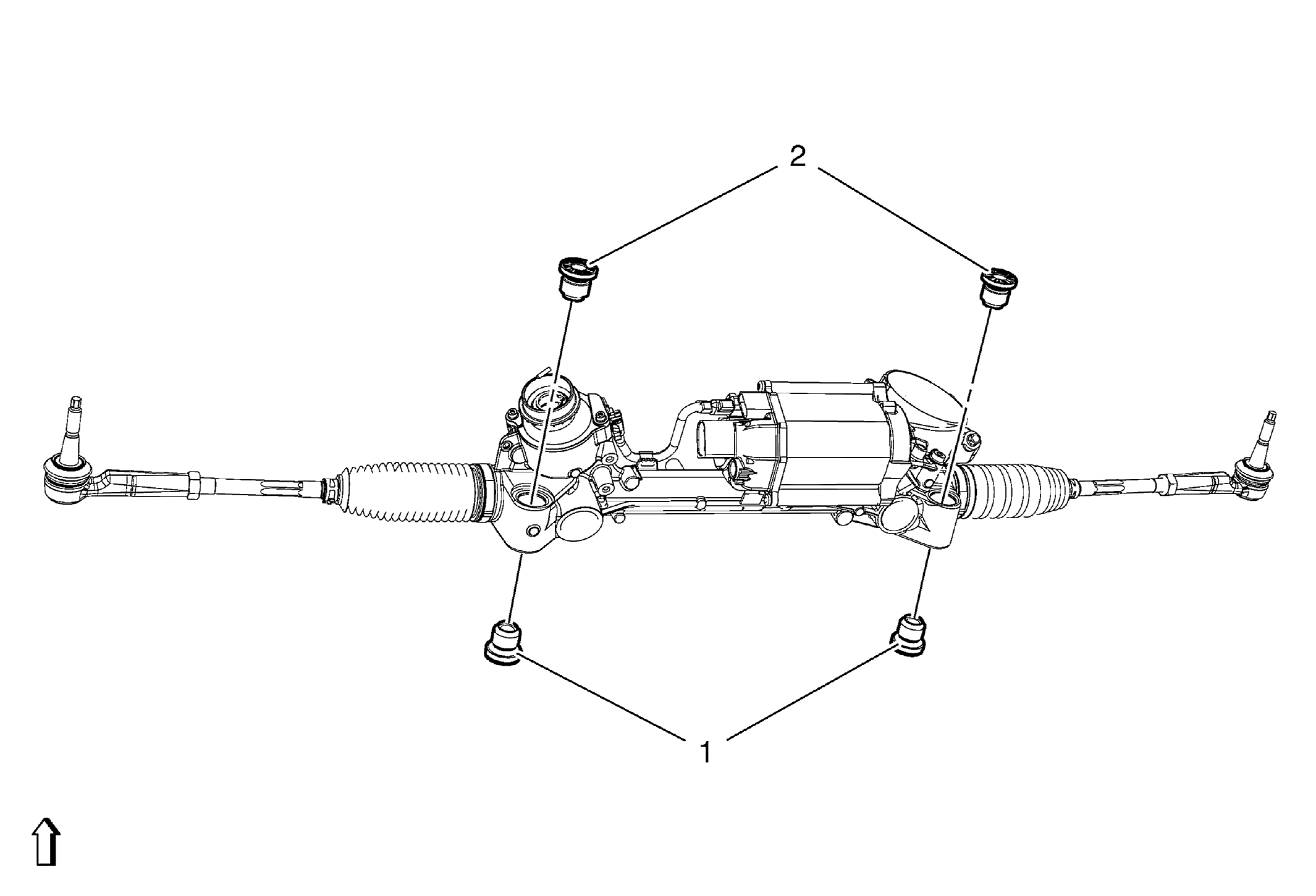

Lower Steering Gear Bushing Procedure
- Have an assistant hold the steering gear in place.
- Remove and DISCARD bushing using suitable pliers.
- Lubricate new bushing with a mild soap to assure easy installation.
|
| 2 |
Upper Steering Gear Bushing Procedure
- Remove and DISCARD bushing using a suitable punch and a soft rubber mallet.
- Remove old bushing from backside.
- Lubricate new bushing with a mild soap to assure easy installation.
|
