Installation Procedure

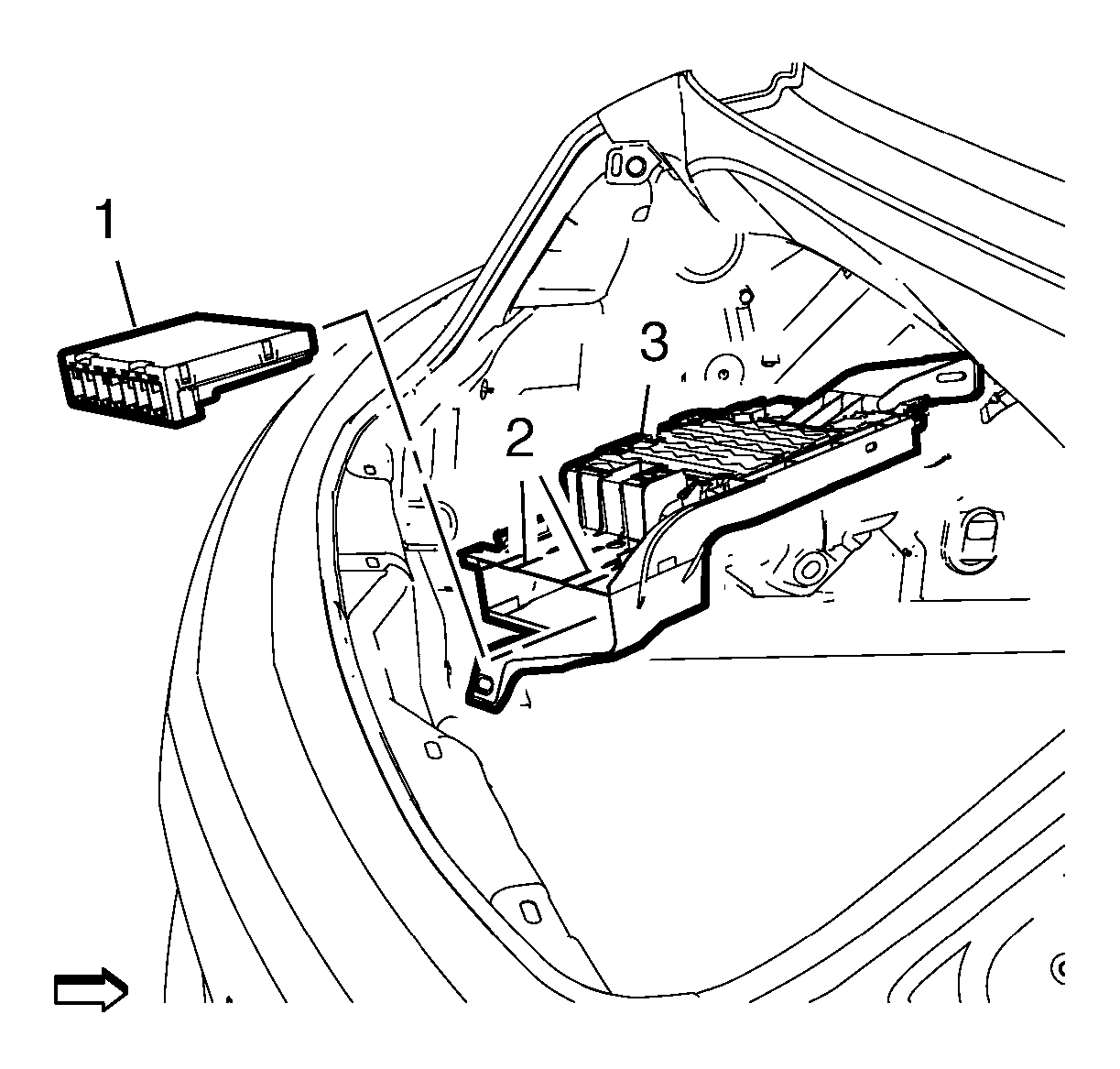

    Fig 1: Folding Top Multifunction Control Module
    GM3011722Courtesy of GENERAL MOTORS COMPANY
  1. Push the folding top multifunction control module (1) into the fuse block bracket (3).

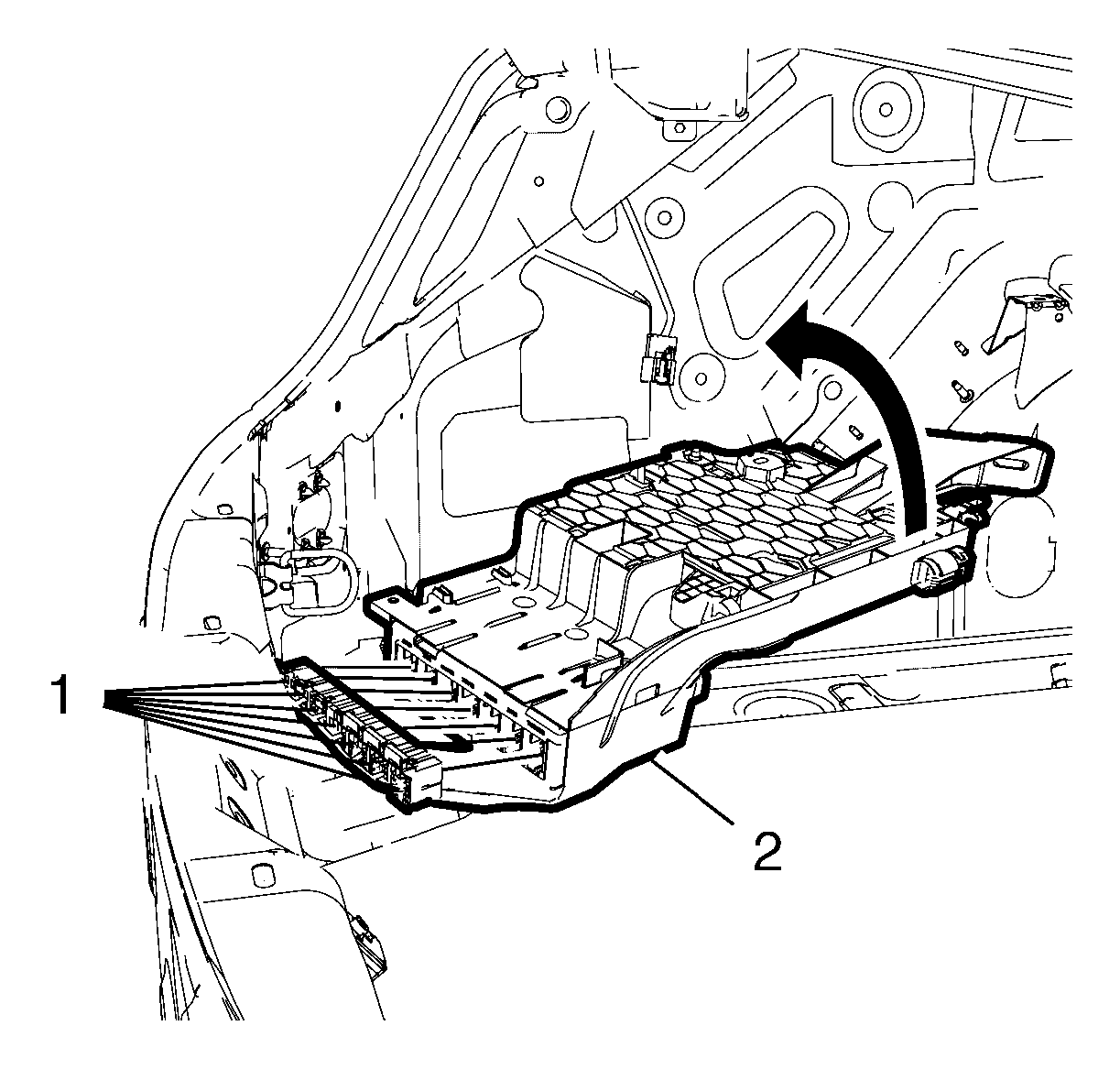

    2. Fig 2: Fuse Block Bracket
    GM3011725Courtesy of GENERAL MOTORS COMPANY
  2. Connect the 7 wiring harness plugs (1) with the folding top multifunction control module.
  3. Flip the fuse block bracket (2) up to its fixing point.
    4. Fig 3: Fuse Block Bracket Nuts And Electrical Connectors
    GM3011723Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  4. Install the 3 fuse block bracket nuts (2).
  5. Connect the wiring harness plug (1).
  6. Program the CRCM. Refer to Control Module References .
    7. Fig 4: Rear Seat Back Armrest Hinge Bracket And Clip
    GM3011724Courtesy of GENERAL MOTORS COMPANY
  7. Install the rear seat back armrest hinge bracket (1).
  8. Install the retainer clip (2).
    9. Fig 5: Quarter Inner Trim Finish Panel - Left Side
    GM2949064Courtesy of GENERAL MOTORS COMPANY
  9. Install the quarter inner trim finish panel - left side (4).
