Front View Camera Replacement

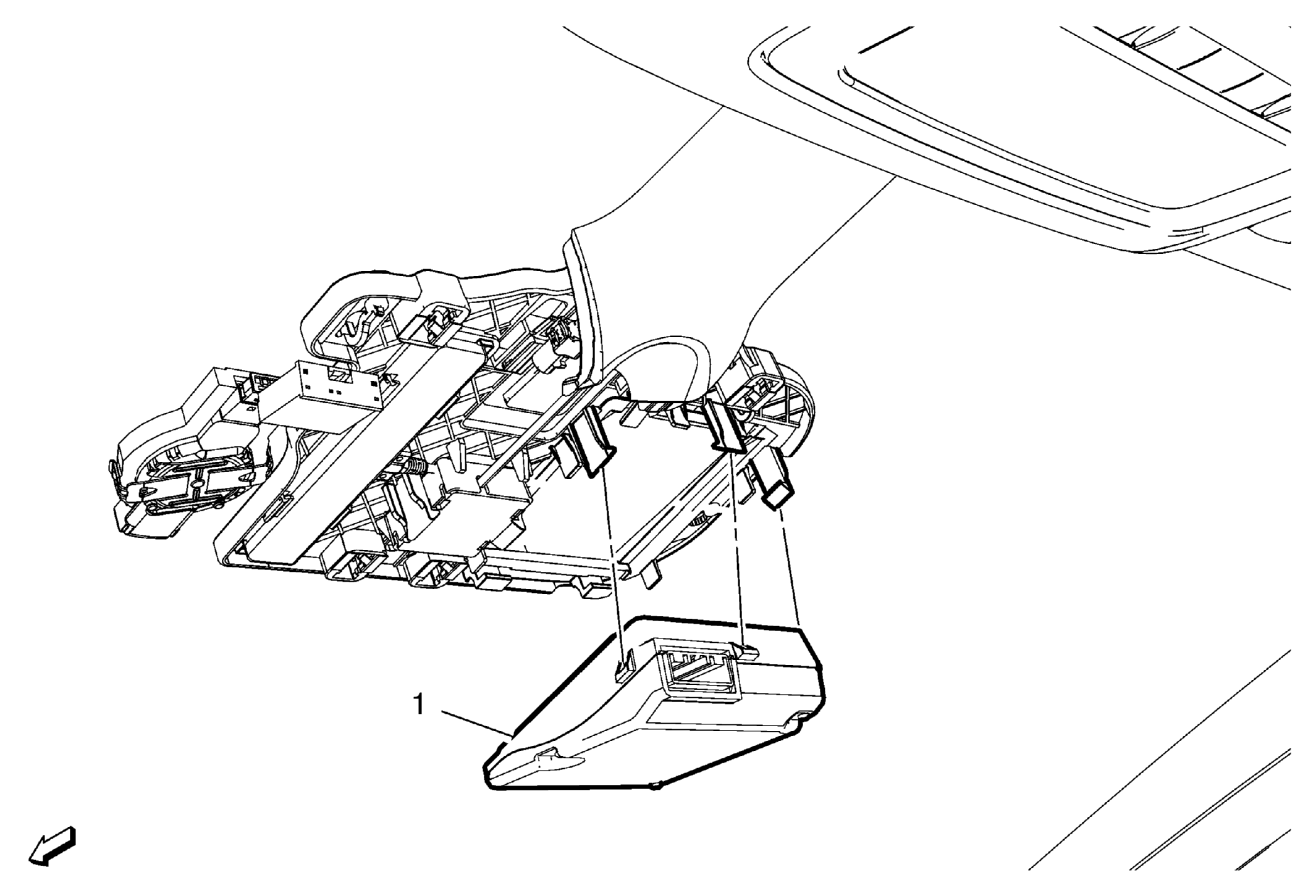

Fig 1: Front View Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the vehicle direction camera cover. Refer to Vehicle Direction Camera Cover Replacement .
1	Front View Camera Procedure Disconnect the electrical connector. Release the front view camera out of the windscreen bracket. After the installation of the new camera, refer Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure
Remove the vehicle direction camera cover. Refer to Vehicle Direction Camera Cover Replacement .

Front View Camera

Procedure

Disconnect the electrical connector.
Release the front view camera out of the windscreen bracket.
After the installation of the new camera, refer Control Module References for programming and set up procedures.
