Installation Procedure

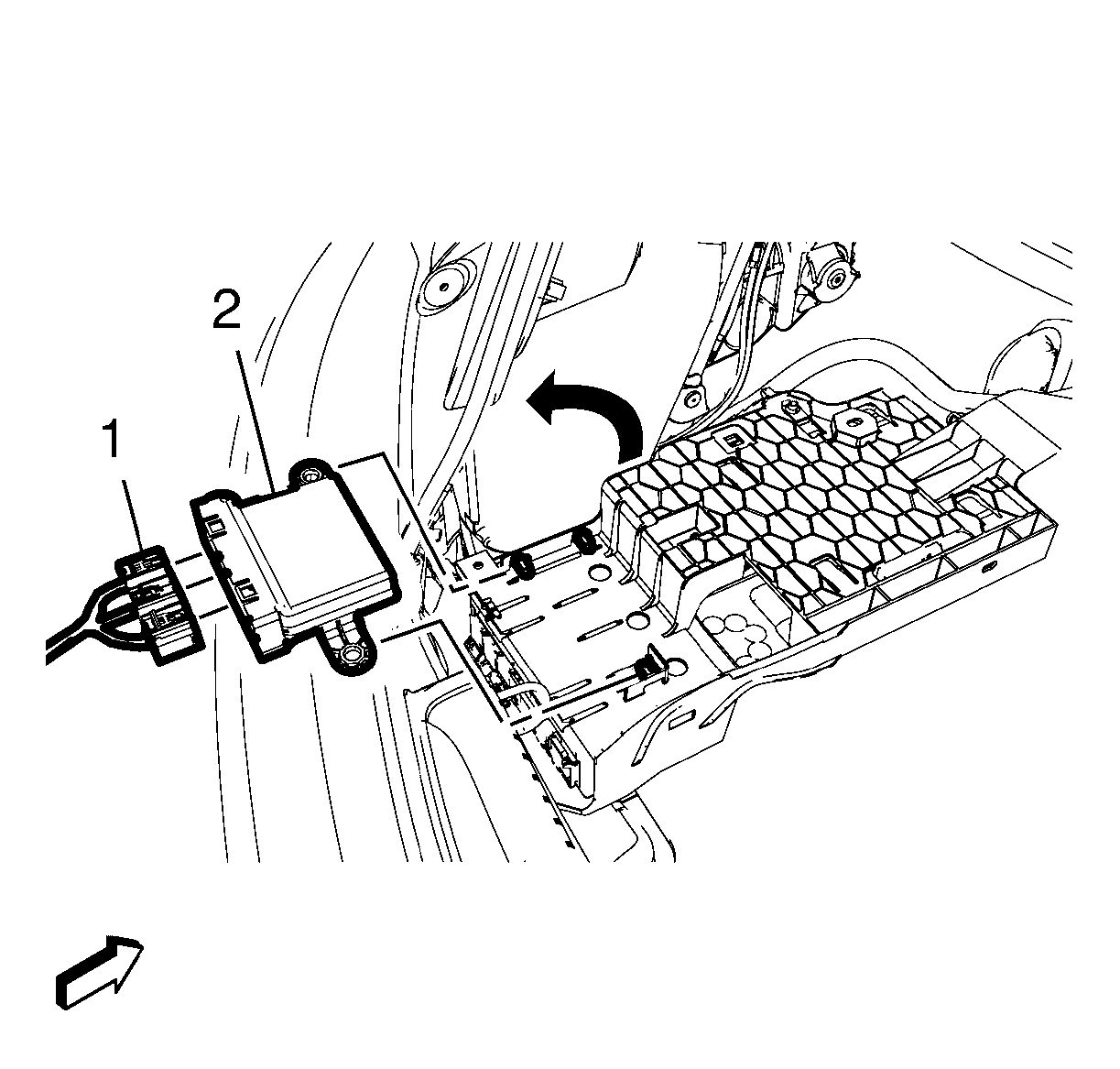

    Fig 1: Front And Rear Object Alarm Module
    GM3137432Courtesy of GENERAL MOTORS COMPANY
  1. Clip in the front and rear object alarm module (2) to the 3 fuse block brackets.
  2. Turn the fuse block bracket (2) up to the fixing point.
  3. Connect the 3 wiring harness plugs (1).

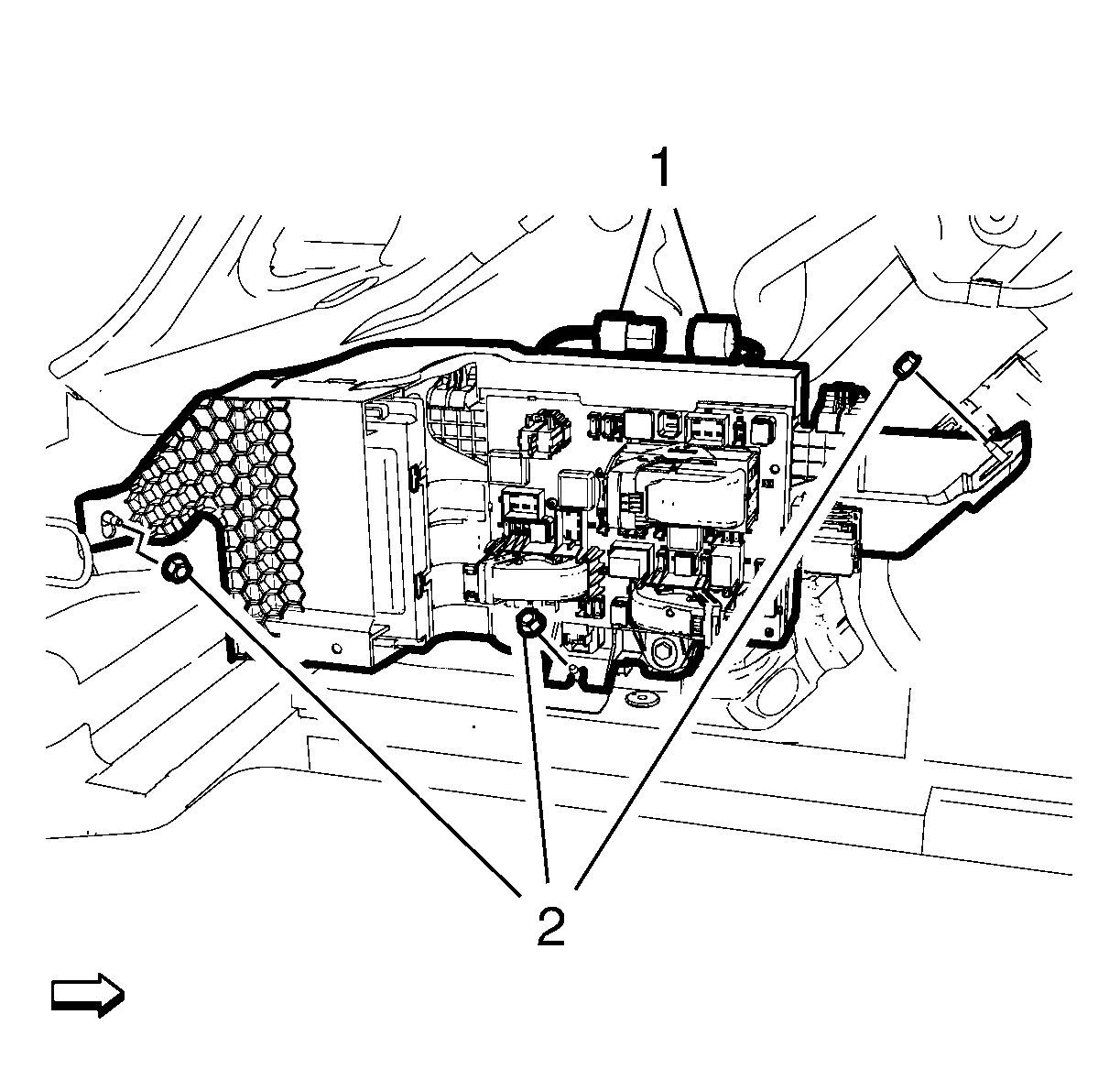

    4. Fig 2: Fuse Block Bracket Nuts And Electrical Connectors
    GM3011723Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  4. Install the 3 fuse block bracket nuts (2).
  5. Connect the wiring harness plug (1).

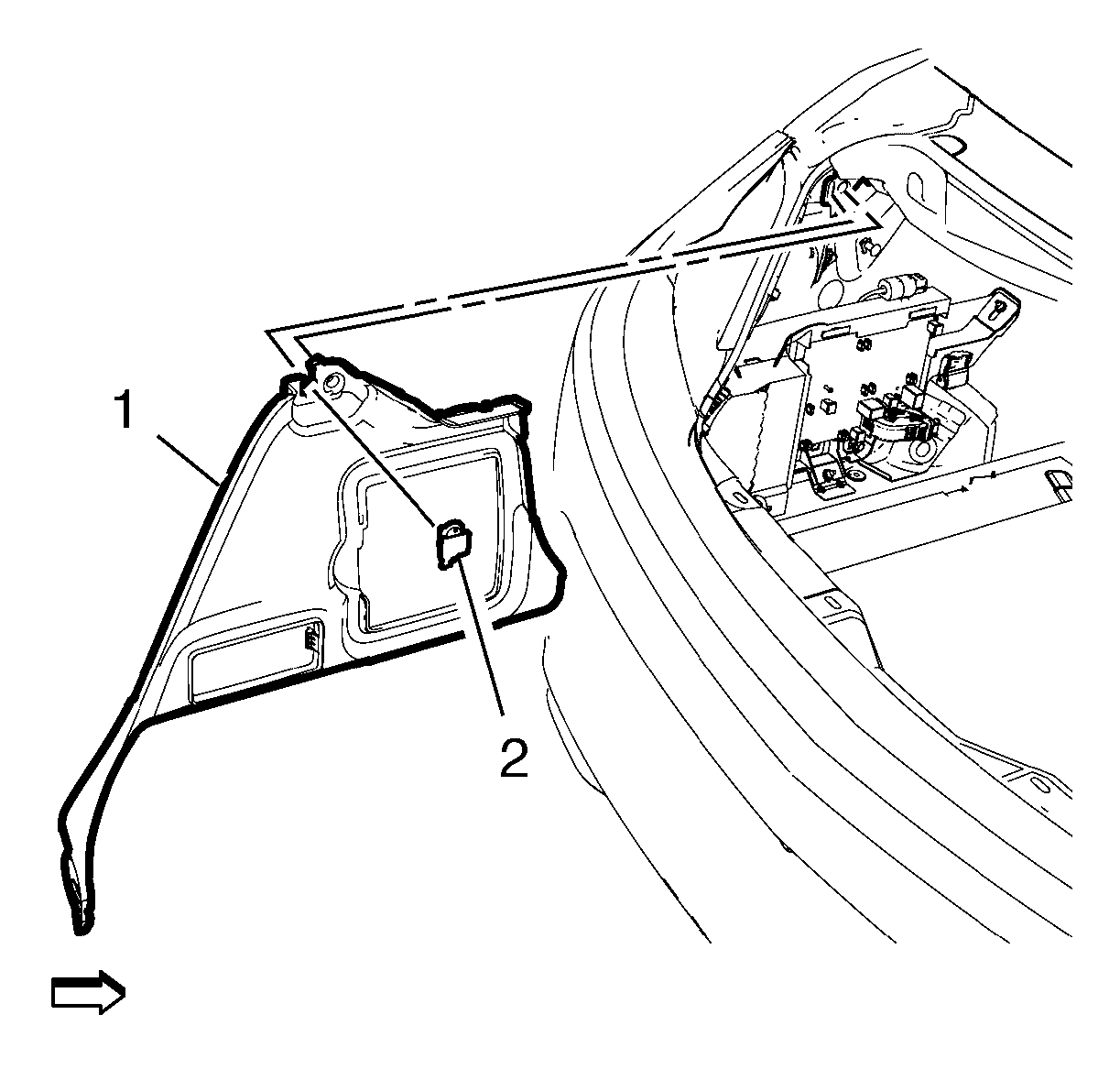

    6. Fig 3: Rear Seat Back Armrest Hinge Bracket And Clip
    GM3011724Courtesy of GENERAL MOTORS COMPANY
  6. Install the rear seat back armrest hinge bracket (1).
  7. Install the retainer clip (2).

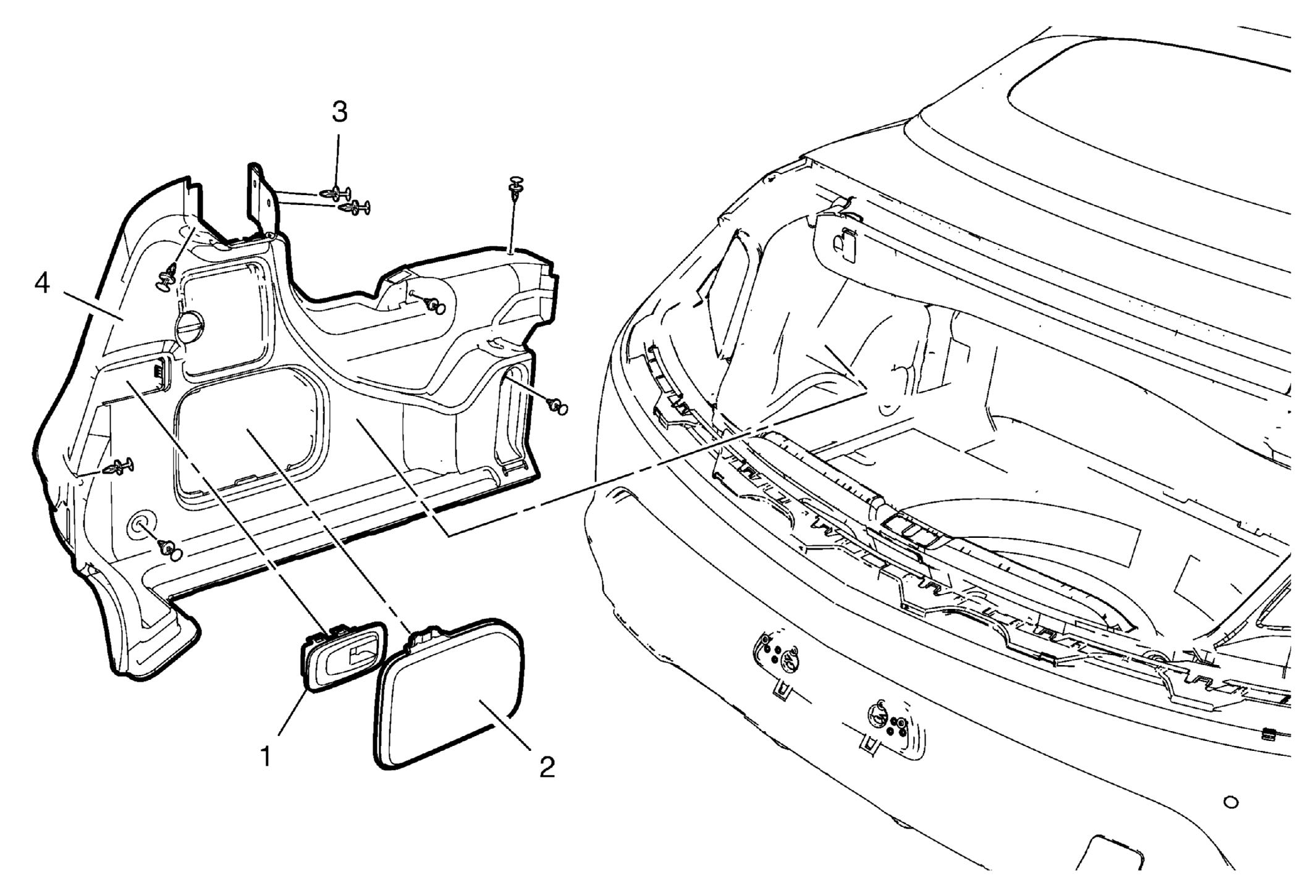

    8. Fig 4: Quarter Inner Trim Finish Panel - Left Side
    GM2949064Courtesy of GENERAL MOTORS COMPANY
  8. Install the quarter inner trim finish panel - left side (4). Refer to Quarter Inner Trim Finish Panel Replacement - Left Side .
