Removal Procedure

    Fig 1: Quarter Inner Trim Finish Panel - Left Side
    GM2949064Courtesy of GENERAL MOTORS COMPANY
  1. Remove the quarter inner trim finish panel - left side (4). Refer to Quarter Inner Trim Finish Panel Replacement - Left Side .
    2. Fig 2: Rear Seat Back Armrest Hinge Bracket And Clip
    GM3011724Courtesy of GENERAL MOTORS COMPANY
  2. Remove the retainer clip (2).
  3. Remove the rear seat back armrest hinge bracket (1).
    4. Fig 3: Fuse Block Bracket Nuts And Electrical Connectors
    GM3011723Courtesy of GENERAL MOTORS COMPANY
  4. Remove the 3 fuse block bracket nuts (2).
  5. Disconnect the wiring harness plug (1).

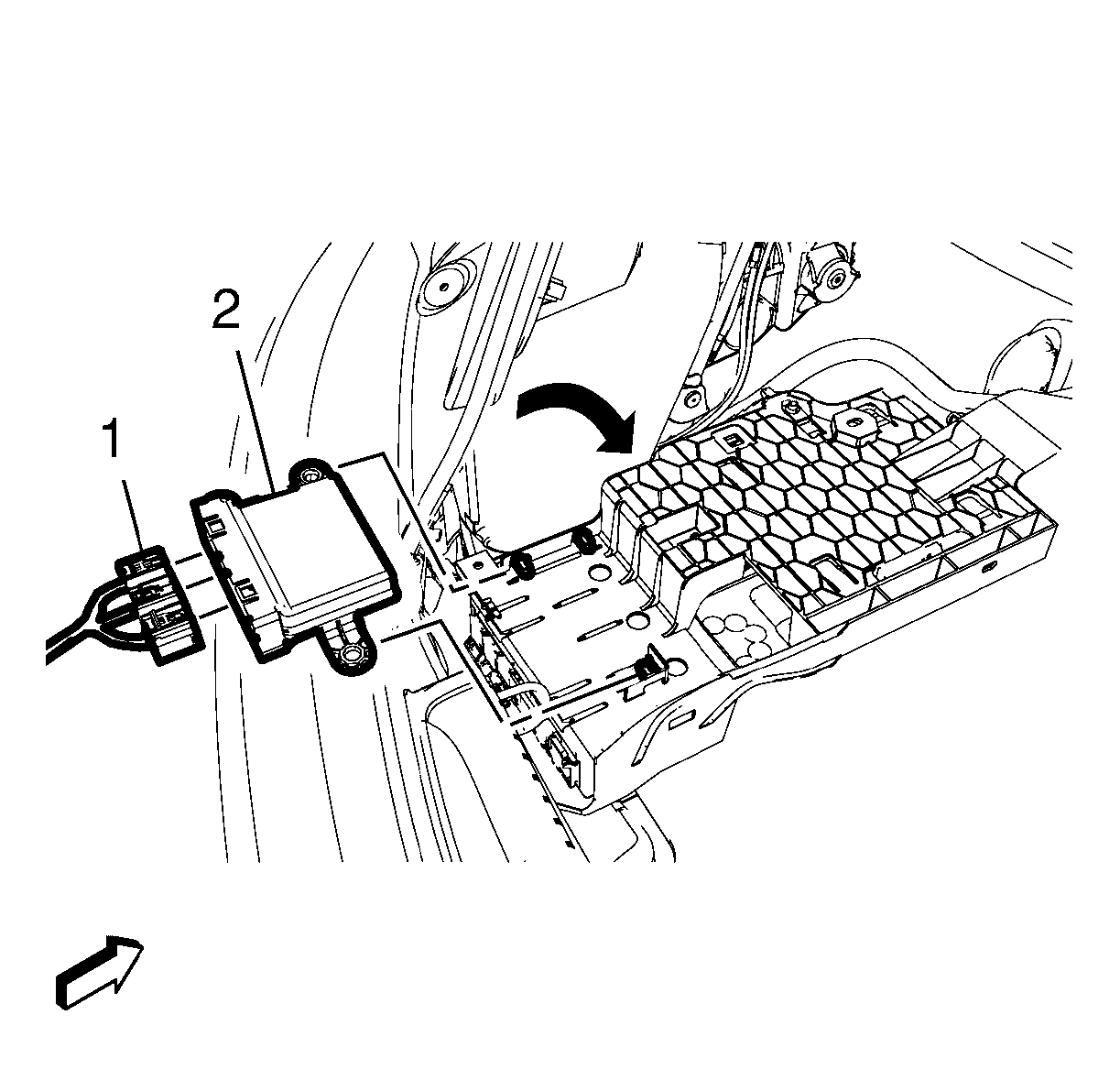

    6. Fig 4: Wiring Harness Plugs
    GM3137424Courtesy of GENERAL MOTORS COMPANY
  6. Turn the fuse block bracket down in a horizontal position.
  7. Disconnect the 3 wiring harness plugs (1).
  8. Unclip the front and rear object alarm module (2) from the 3 fuse block brackets.
