Multifunction Relay Module Bracket Replacement

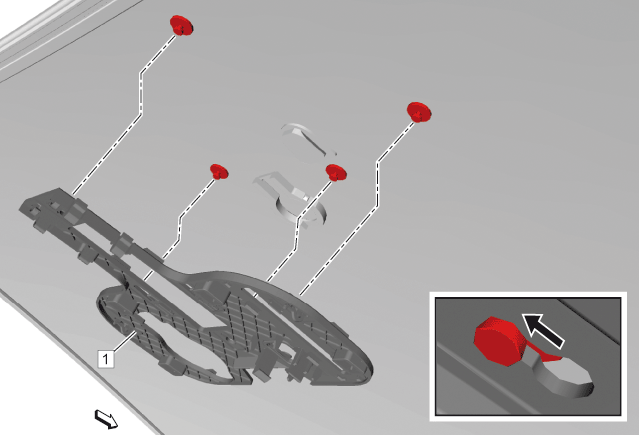

Fig 1: Multifunction Relay Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures If equipped» Front View Camera Replacement If equipped» Inside Air Moisture and Windshield Temperature Sensor Replacement If equipped» Windshield Outside Moisture Sensor Replacement If equipped» Radio Antenna Base Replacement Inside Rearview Mirror Replacement
<p01>	Multifunction Relay Module Bracket Procedure Disconnect the electrical connectors. Slide the bracket upward to disengage tabs, gently pull from windshield.

Callout

Component Name

Preliminary Procedures

<p01>

Multifunction Relay Module Bracket

Procedure
