Rear Object Sensor Wiring Harness Replacement

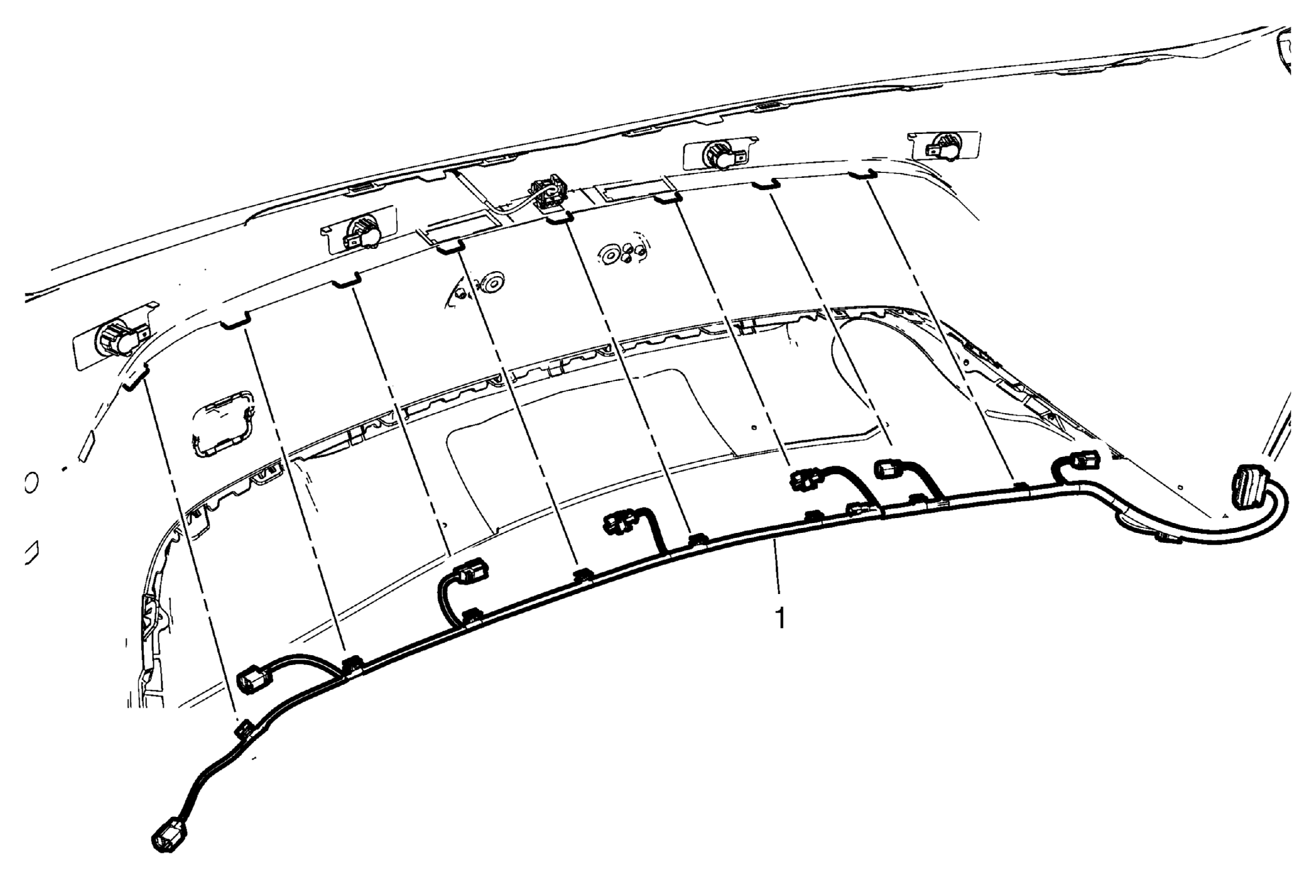

Fig 1: Rear Object Sensor Wiring Harness

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
1	Rear Object Sensor Wiring Harness Procedure Disconnect the electrical connectors. Unclip the 9 wiring harness retainers.

Callout

Component Name

Preliminary Procedure
Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .

Rear Object Sensor Wiring Harness

Procedure
