Left Rear of the Engine Components

Left Rear of the Engine Components

Items
1. B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1
2. T8D Ignition Coil 4 T8D Ignition Coil 4
3. T8C Ignition Coil 3 T8C Ignition Coil 3
4. T8B Ignition Coil 2 T8B Ignition Coil 2
5. T8A Ignition Coil 1 T8A Ignition Coil 1
6. B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor
7. Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake
8. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve
9. Q38 Throttle Body Q38 Throttle Body
10. B65 Intake Manifold Pressure and Air Temperature Sensor B65 Intake Manifold Pressure and Air Temperature Sensor
11. G13 Generator G13 Generator
12. B52B Heated Oxygen Sensor 2 B52B Heated Oxygen Sensor 2
13. M64 Starter Motor M64 Starter Motor
14. G8 Coolant Pump - Auxiliary G8 Coolant Pump - Auxiliary
15. Q18 Fuel Pressure Regulator Q18 Fuel Pressure Regulator
16. B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake
17. B34A Engine Coolant Temperature Sensor 1 B34A Engine Coolant Temperature Sensor 1

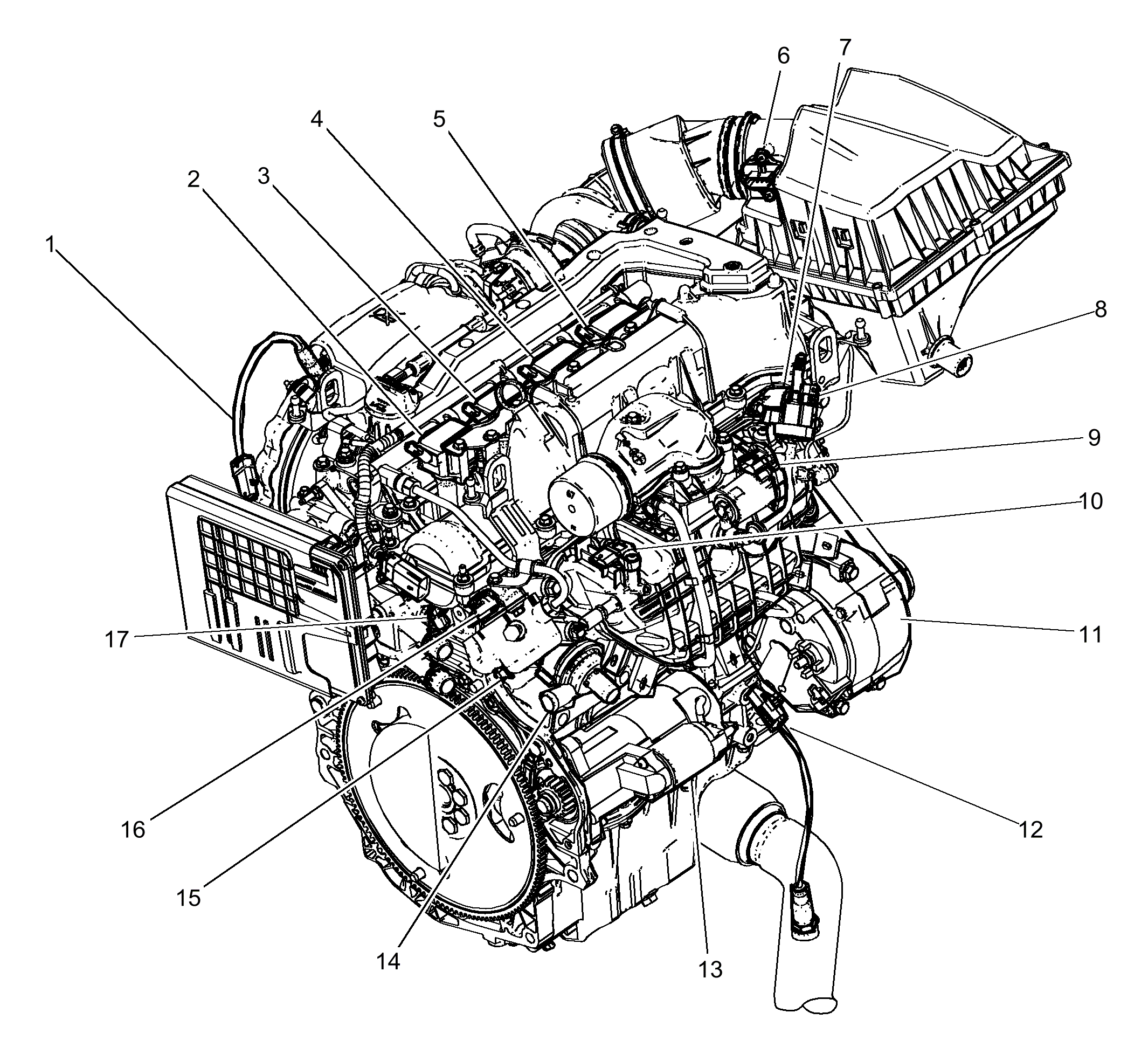

Fig 1: Left Rear of the Engine Components
GM4237831Courtesy of GENERAL MOTORS COMPANY
