Right Front of the Engine Components

Right Front of the Engine Components

Items
1. Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust
2. Q42 Turbocharger Wastegate Solenoid Valve Q42 Turbocharger Wastegate Solenoid Valve
3. X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3X50A Fuse Block - Underhood X6
4. K20 Engine Control Module K20 Engine Control Module X1K20 Engine Control Module X2K20 Engine Control Module X3
5. E41 Engine Coolant Thermostat Heater E41 Engine Coolant Thermostat Heater
6. Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve
7. Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch

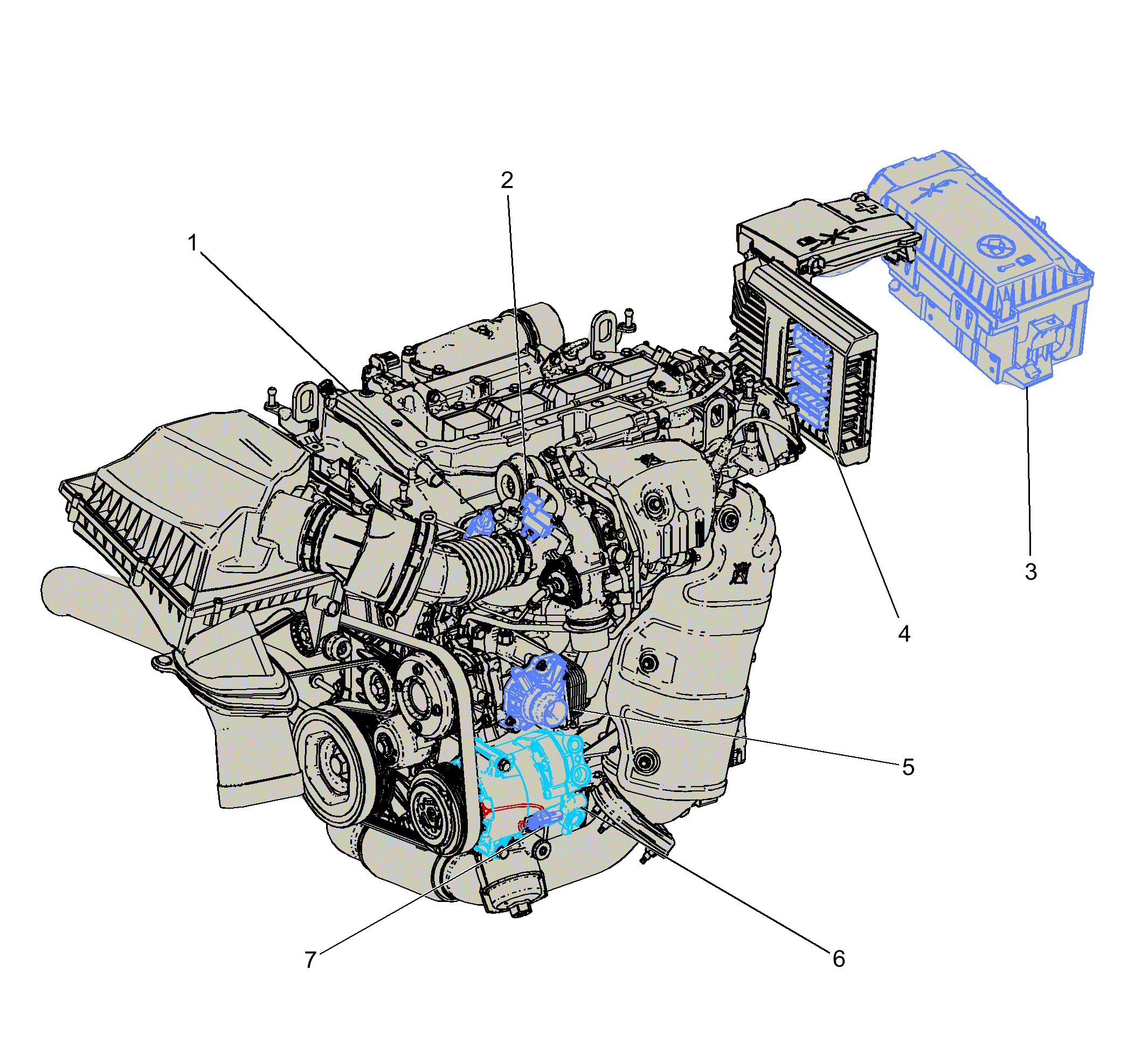

Fig 1: Right Front of the Engine Components
GM2912699Courtesy of GENERAL MOTORS COMPANY
