Module Power, Ground and Serial Data

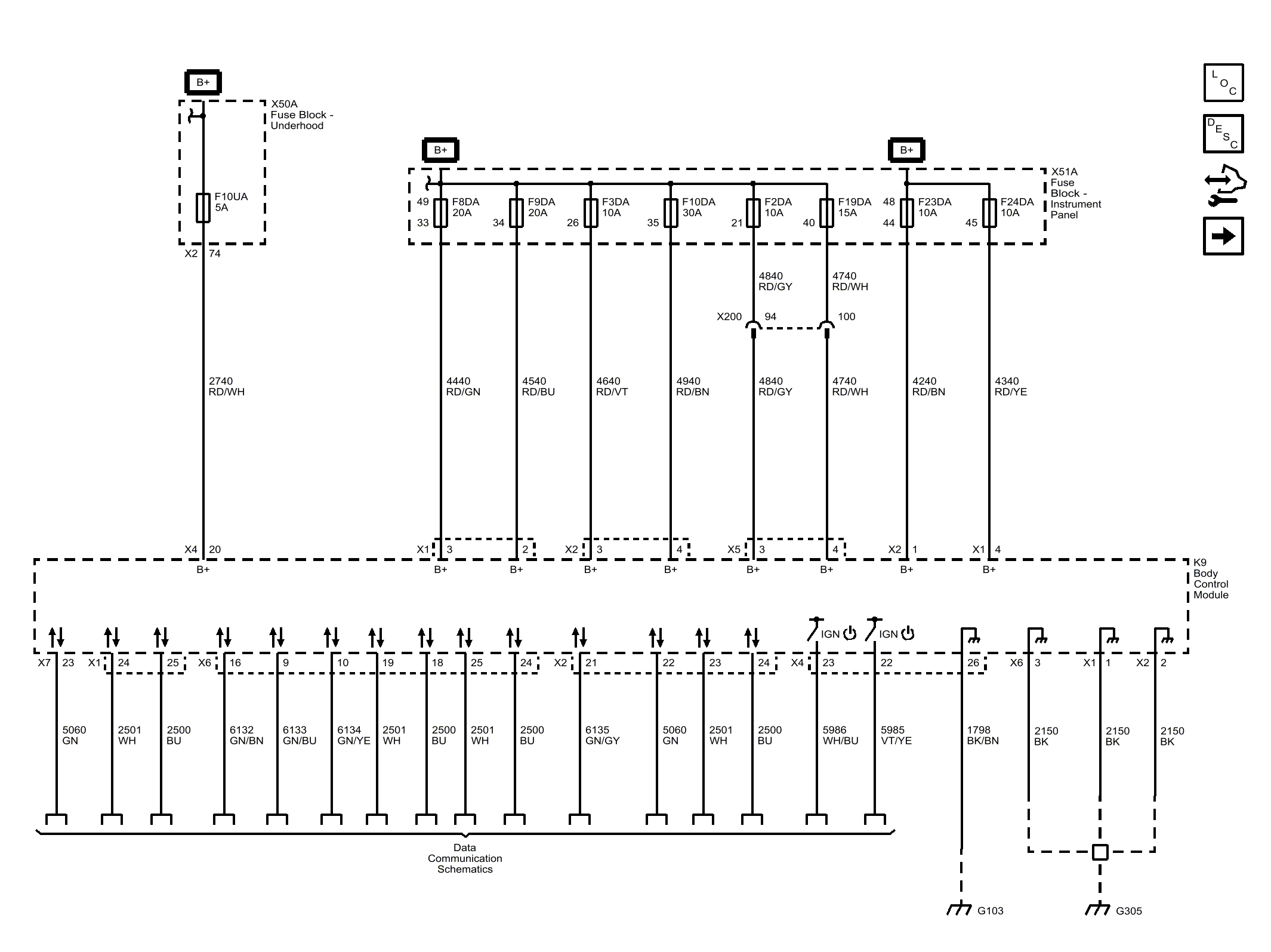

Fig 1: Module Power, Ground and Serial Data
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
