Communication Enable Distribution

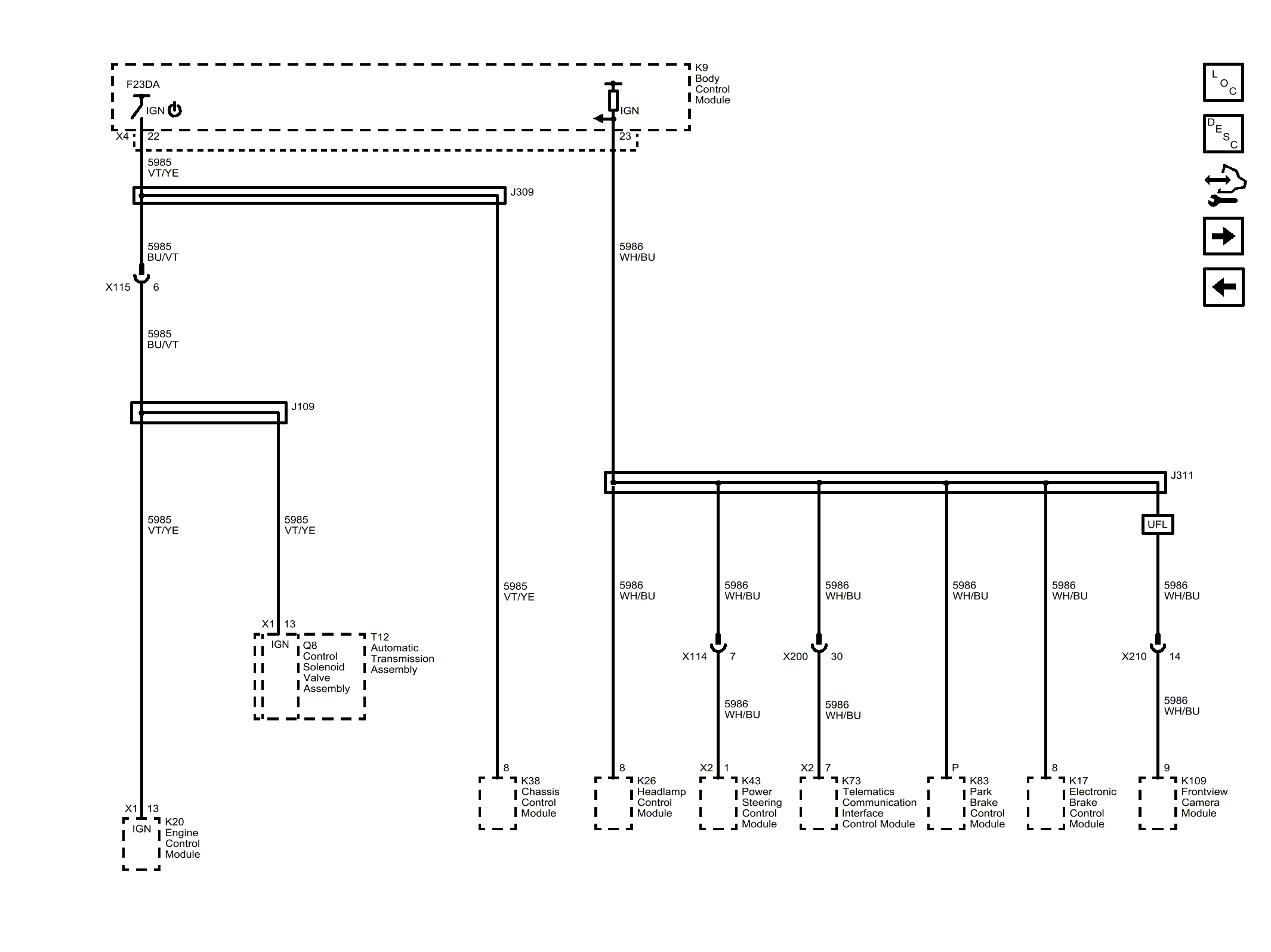

Fig 1: Communication Enable Distribution
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
