Communication Interface Module Replacement
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 1 |

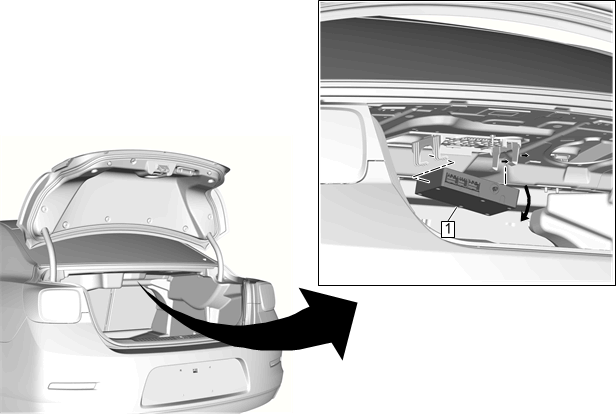

Communication Interface Module Procedure
- Remove the rear window panel stowage compartment cover, if equipped.
- Unsnap the module from the bracket.
- Disconnect the electrical connector.
- Reprogram the communication interface module after installation. Refer to Control Module References
.
|
