Ignition Lock Key Transmitter Antenna Replacement - Instrument Panel
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
Preliminary Procedure
Reposition the front floor carpet as needed. |

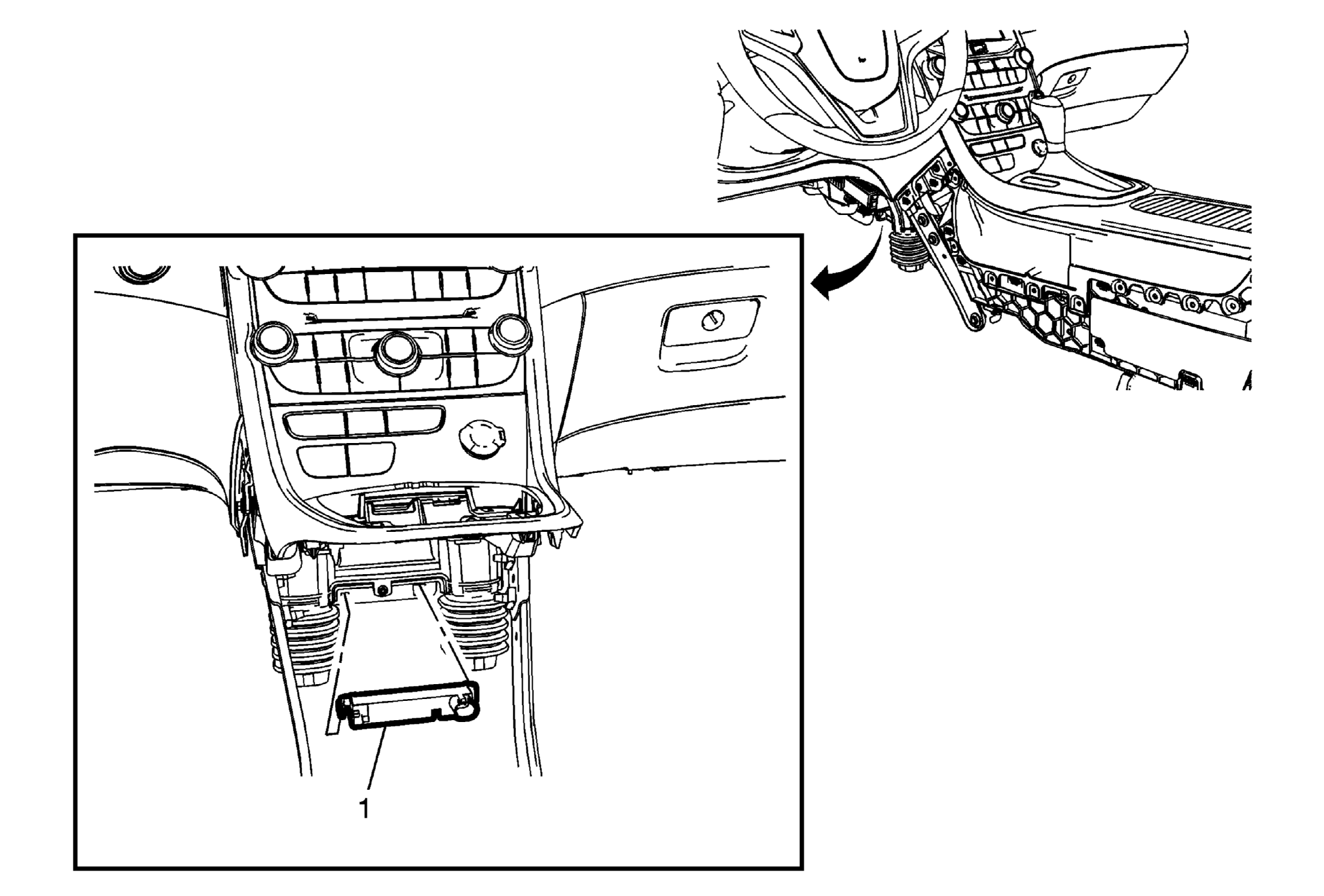

| 1 |
Ignition Lock Key Transmitter Antenna Assembly Procedure
- Reposition air duct as required.
- Unsnap antenna from the heater module.
- Disconnect the electrical connector.
|
