Forward Collision Alert Display Replacement
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

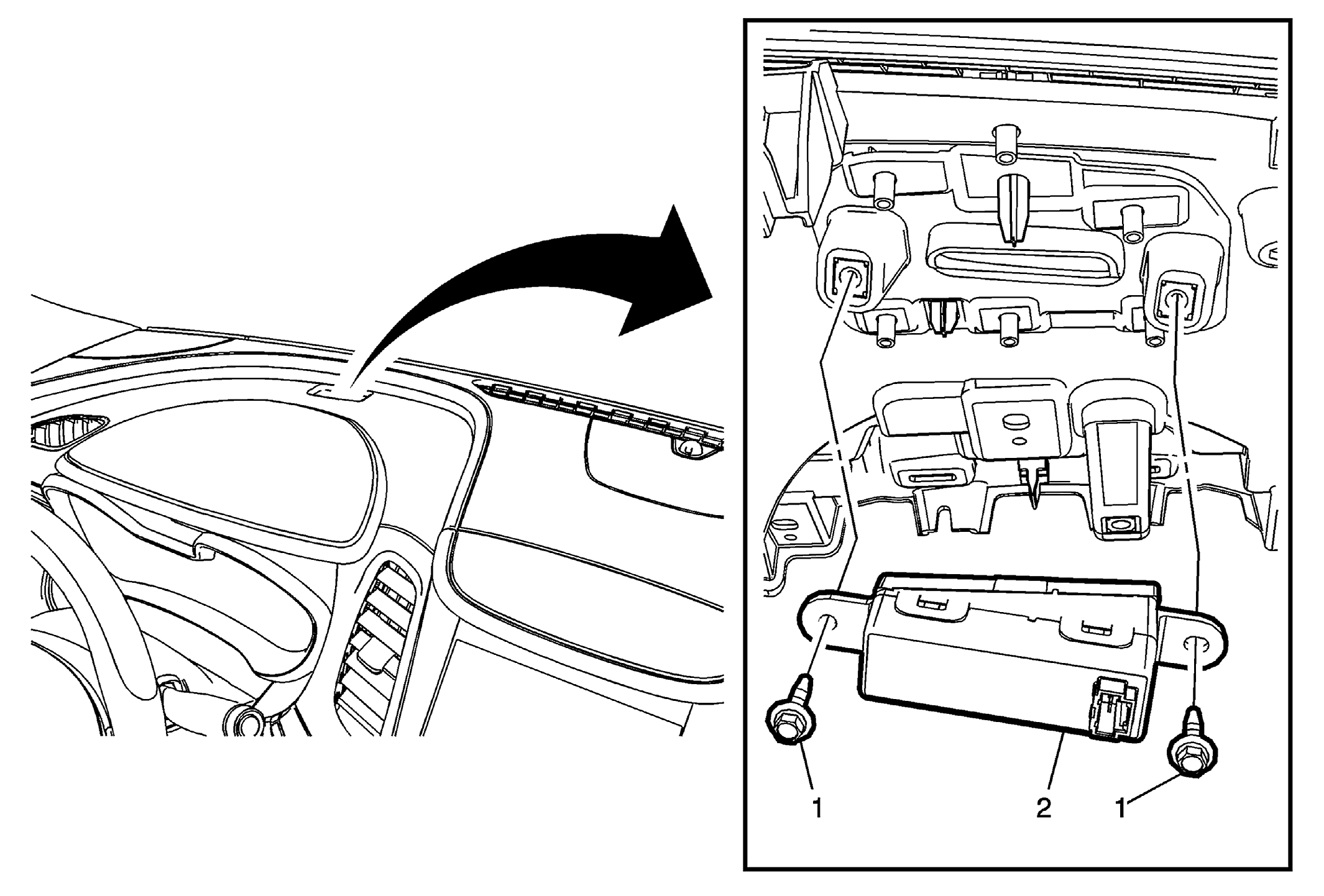

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement . |
|
| 1 | Forward Collision Alert Display (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
|
| 2 | Forward Collision Alert Display Procedure Disconnect the electrical connector. |
