Front View Camera Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

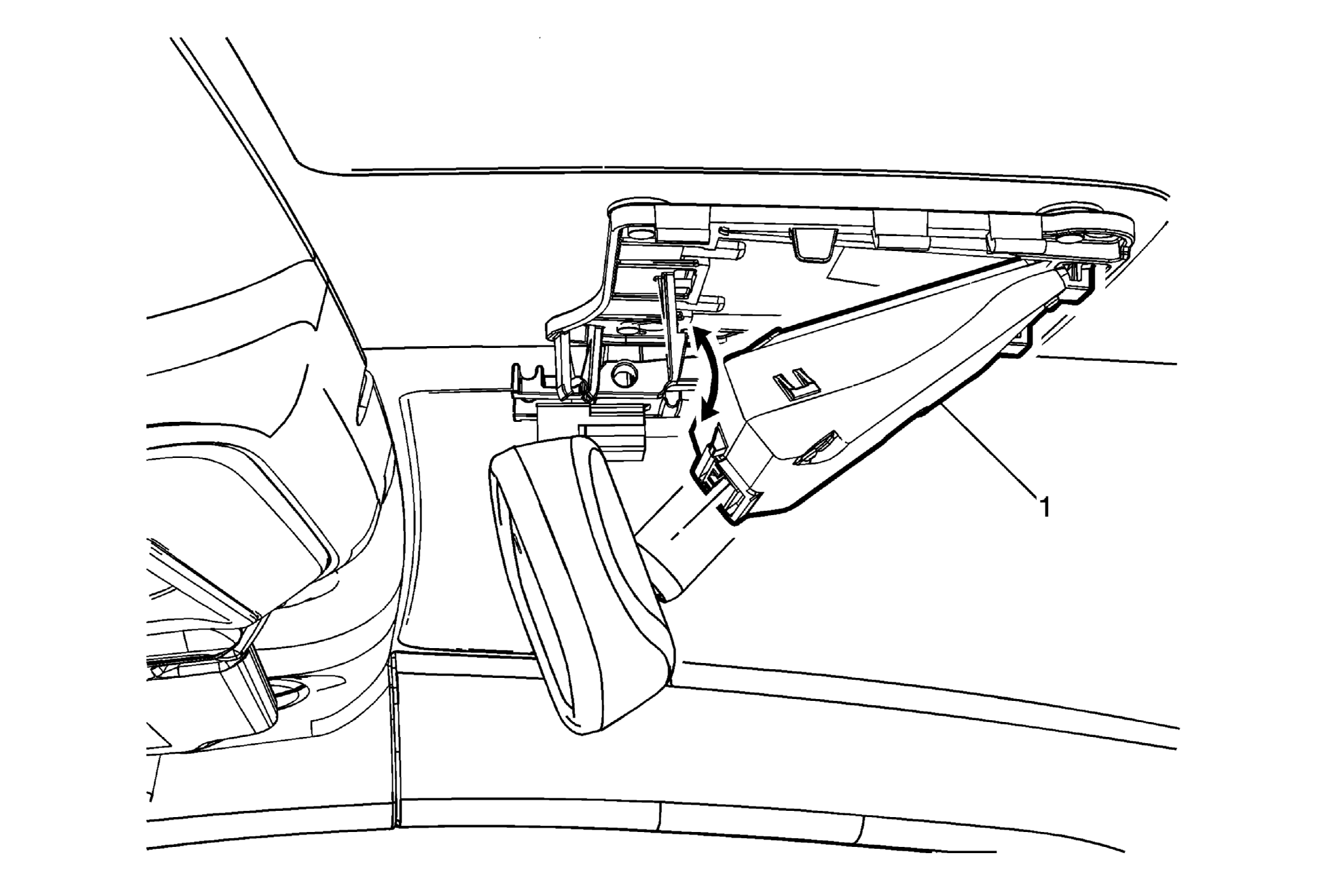

Fig 1: Front View Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the inside rearview mirror wiring harness cover. Refer to Inside Rearview Mirror Wiring Harness Cover Replacement .
1	Front View Camera Procedure Using a suitable plastic tool, insert the tool between the edge of the front view camera retainers, turn the tool to release the retainers and the camera and rotate downward. Disconnect the electrical connector. After replacement of the front view camera, program the front view camera. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the inside rearview mirror wiring harness cover. Refer to Inside Rearview Mirror Wiring Harness Cover Replacement .

Front View Camera

Procedure

Using a suitable plastic tool, insert the tool between the edge of the front view camera retainers, turn the tool to release the retainers and the camera and rotate downward.
Disconnect the electrical connector.
After replacement of the front view camera, program the front view camera. Refer to Control Module References .
