Rear Object Alarm Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

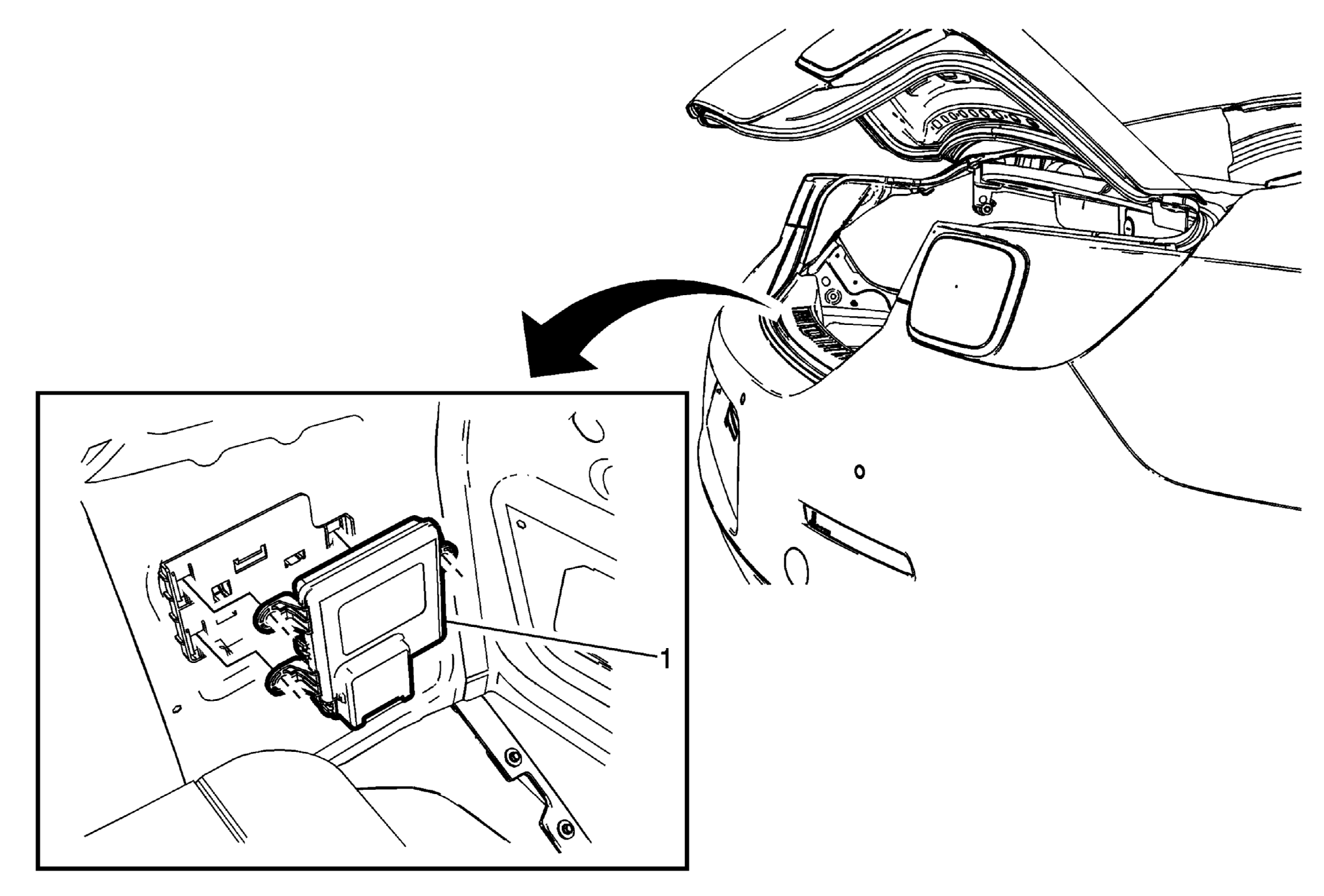

Fig 1: Rear Object Alarm

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the left side rear compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement .
1	Rear Object Alarm Module Assembly Procedure Release the locking retainer from the rear object alarm module bracket. Disconnect the electrical connectors. For programming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the left side rear compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement .

Rear Object Alarm Module Assembly

Procedure

Release the locking retainer from the rear object alarm module bracket.
Disconnect the electrical connectors.
For programming and set up, refer to Control Module References .
