Rearview Camera Image Display Module Replacement
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

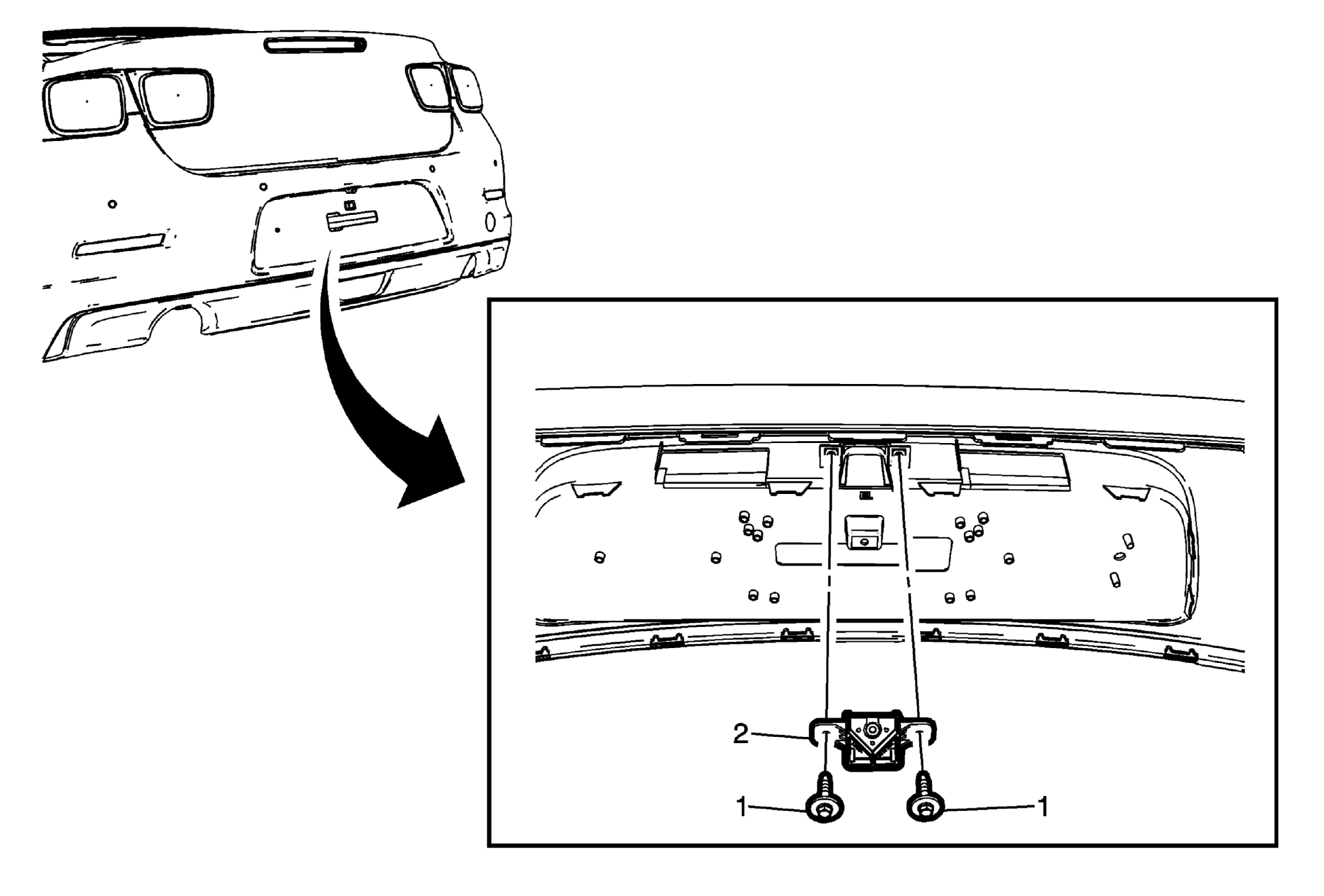

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear bumper upper fascia. Refer to Rear Bumper Upper Fascia Replacement . |
|
| 1 | Rearview Camera Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
|
| 2 | Rearview Camera Image Display Module Procedure Disconnect electrical connector. |
