Theft Deterrent Module Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

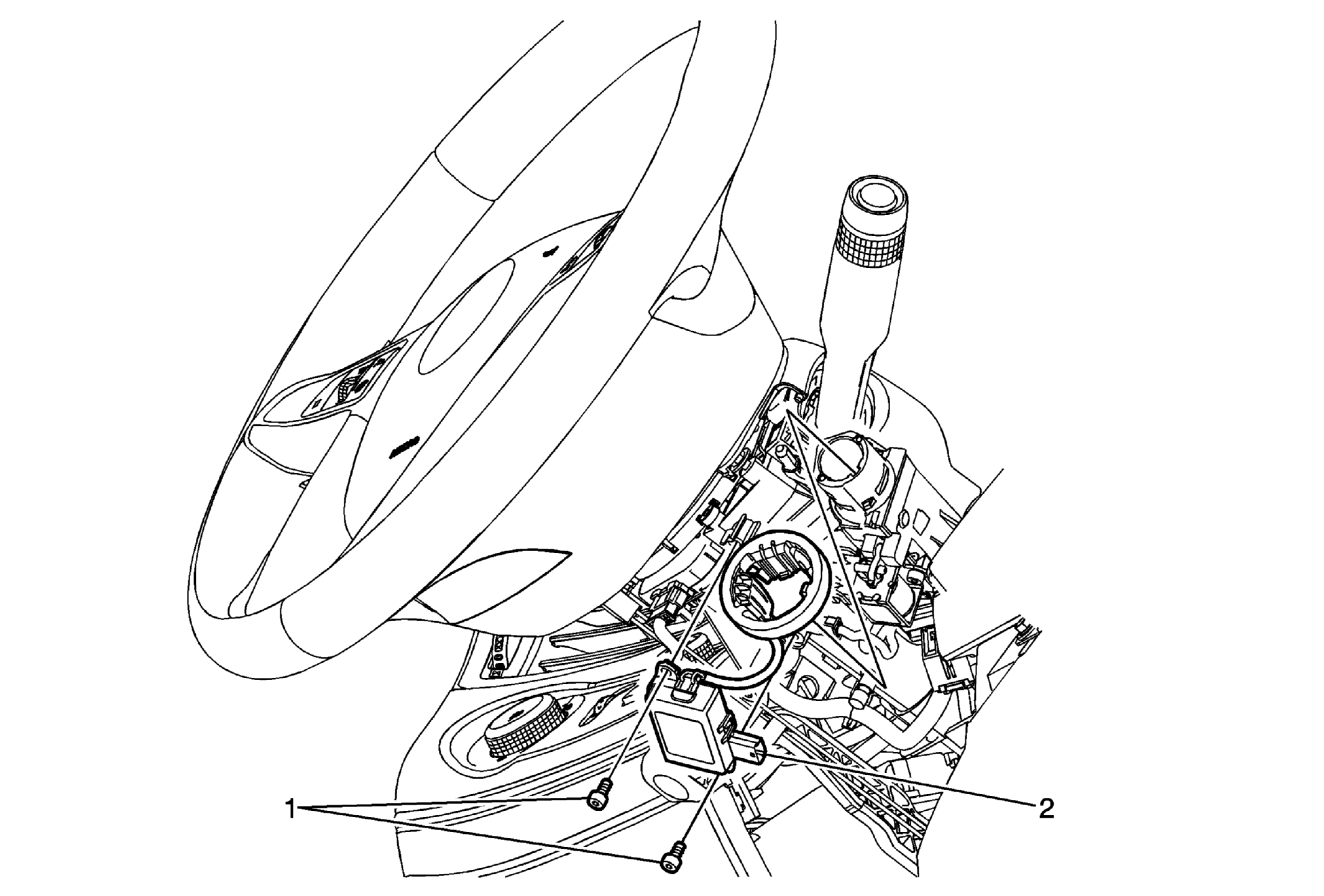

Fig 1: Theft Deterrent Module (Without BTM)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement .
1	Theft Deterrent Module Fastener (Qty: 2)
2	Theft Deterrent Module Assembly Procedure Disconnect the electrical connector. Program the theft deterrent control module after replacement. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement .

Theft Deterrent Module Fastener (Qty: 2)

Theft Deterrent Module Assembly

Procedure

Disconnect the electrical connector.
Program the theft deterrent control module after replacement. Refer to Control Module References .
