Front Seat Belt Retractor Replacement

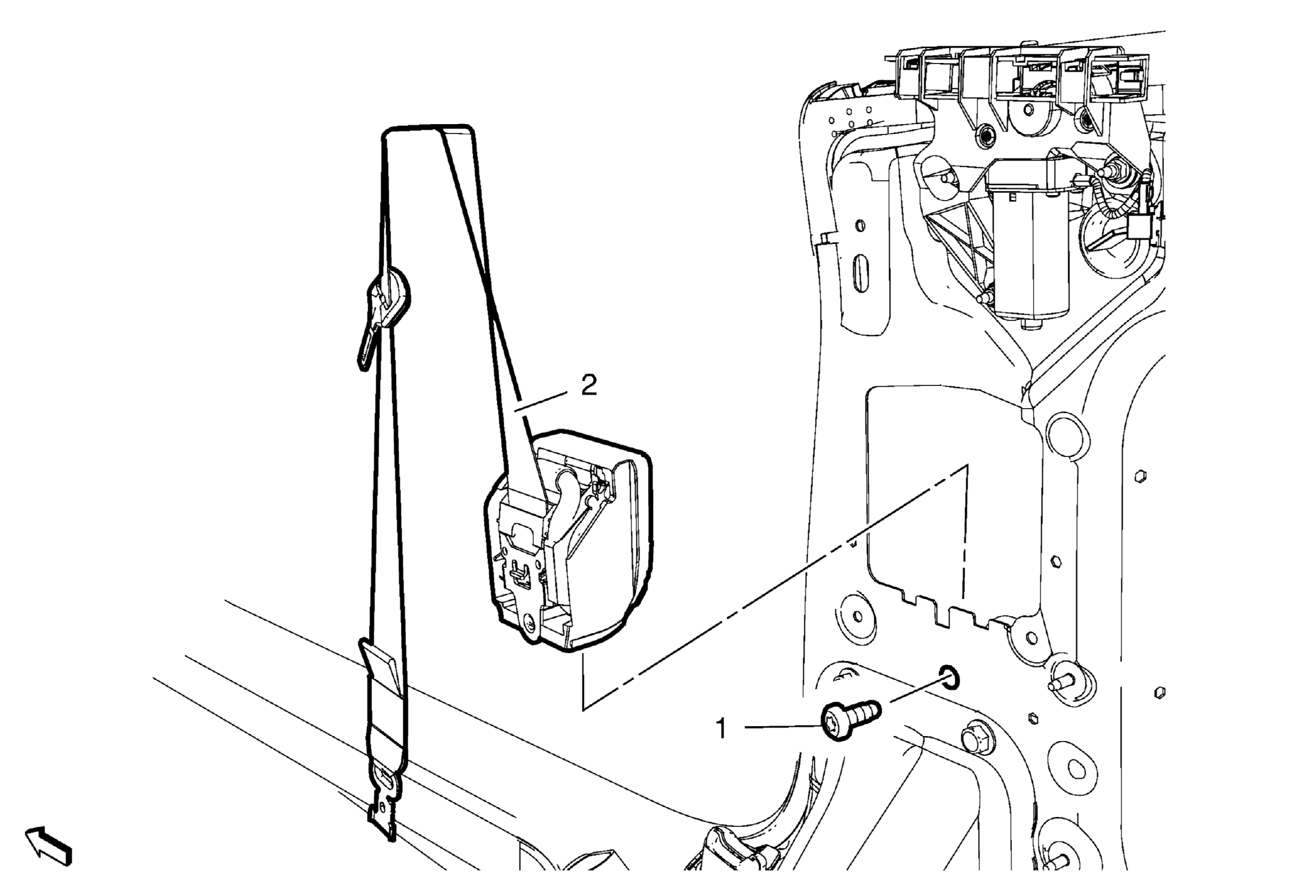

Fig 1: Front Seat Belt Retractor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . WARNING: In order to prevent accidental deployment and the risk of personal injury, do not dispose of an undeployed inflator module as normal shop waste. Undeployed inflator modules contain substances that could cause severe illness or personal injury if their sealed containers are damaged during disposal. Use the following deployment procedures to safely dispose of an undeployed inflator module. Failure to observe the following disposal methods may be a violation of appropriate country, regional or local laws. Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the quarter window trim finish panel. Refer to Quarter Window Trim Finish Panel Replacement .
1	Front Seat Belt Retractor Bolt CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Front Seat Belt Retractor

Callout

Component Name

WARNING:

In order to prevent accidental deployment and the risk of personal injury, do not dispose of an undeployed inflator module as normal shop waste. Undeployed inflator modules contain substances that could cause severe illness or personal injury if their sealed containers are damaged during disposal. Use the following deployment procedures to safely dispose of an undeployed inflator module. Failure to observe the following disposal methods may be a violation of appropriate country, regional or local laws.

Preliminary Procedures

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the quarter window trim finish panel. Refer to Quarter Window Trim Finish Panel Replacement .

Front Seat Belt Retractor Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
45 N.m (33 lb ft)

Front Seat Belt Retractor
