Steering Gear Heat Shield Replacement

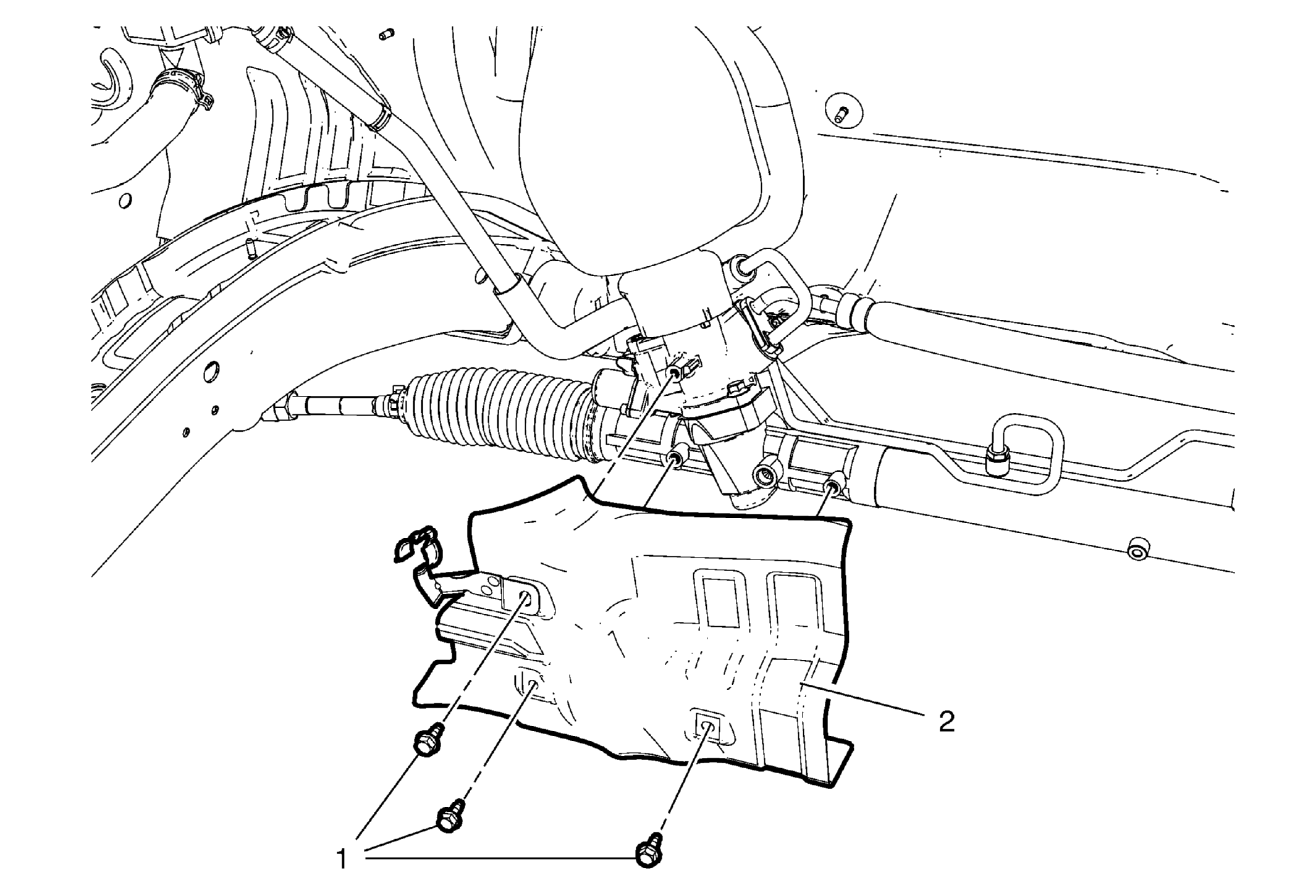

| Callout | Component Name |
|---|---|
| Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Steering Gear Heat Shield Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Steering Gear Heat Shield
NOTE:
Removal and installation of the steering gear heat shield has to be performed from the bottom up. Procedure Carefully remove the heat shield from steering gear along the catalytic converter. |
