Vehicle Stability Control System Switch Replacement

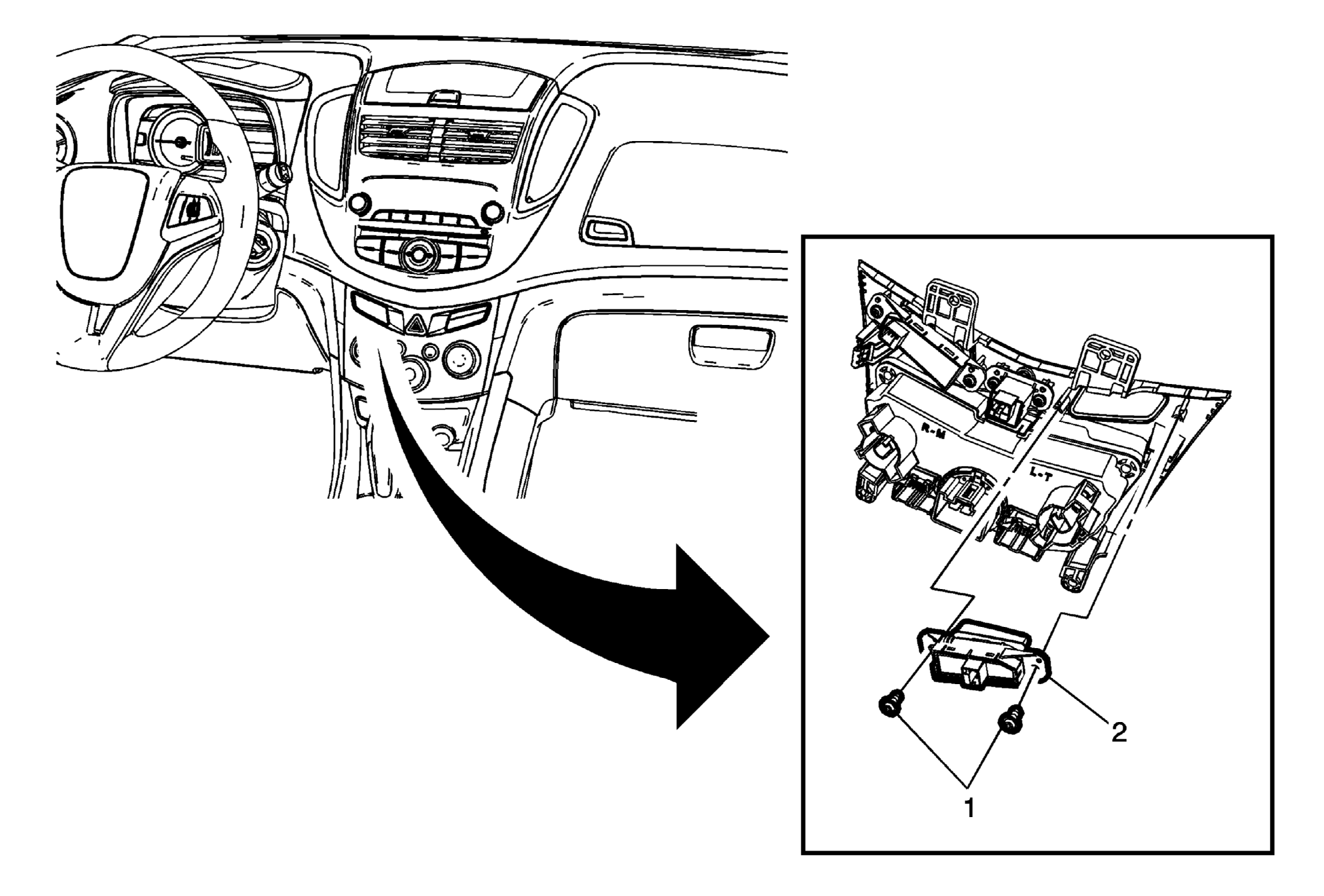

Fig 1: Vehicle Stability Control System Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the heater and air conditioning control. Refer to Heater and Air Conditioning Control Replacement .
1	Vehicle Stability Control System Switch Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  1.2 N.m (11 lb in)
2	Vehicle Stability Control System Switch
