Catalytic Converter Front Heat Shield Replacement

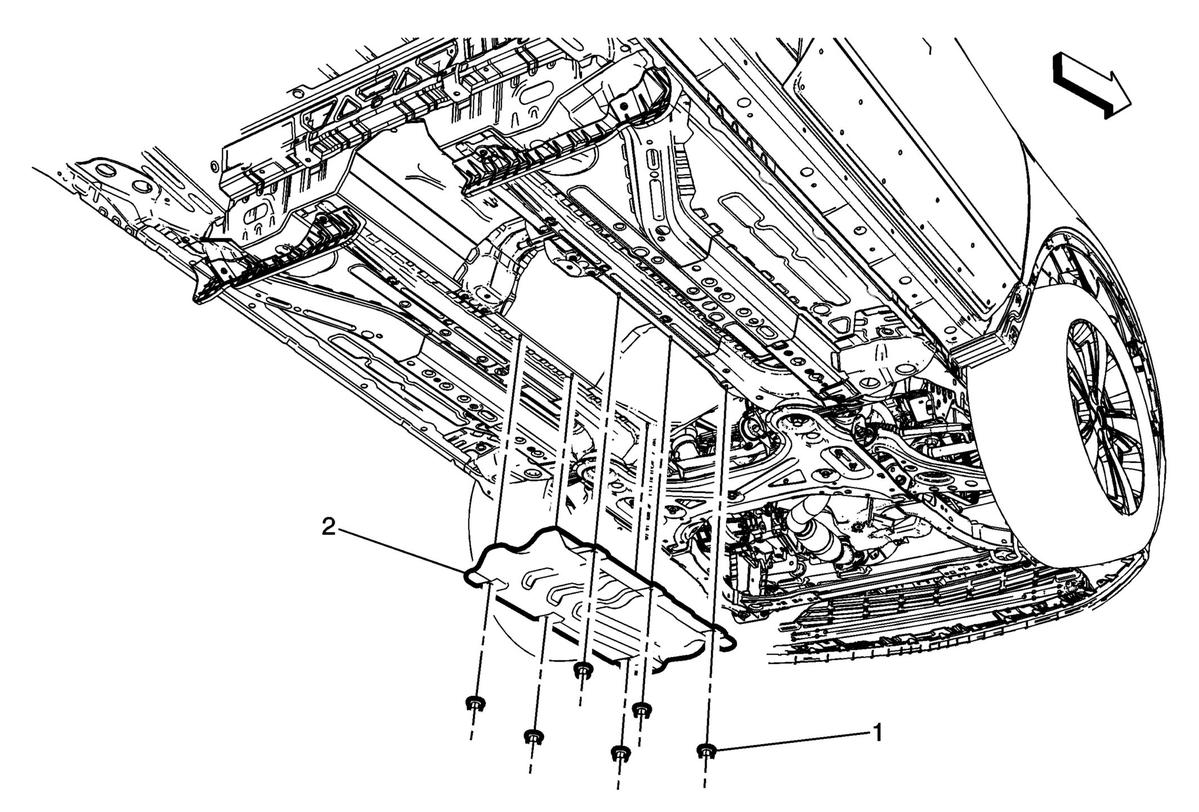

Fig 1: Catalytic Converter Front Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Exhaust Service Warning . WARNING: Refer to Eye Protection Warning . Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle
1	Catalytic Converter Front Heat Shield Fastener CAUTION: Refer to Fastener Caution . Tighten  3 N.m (26 lb in)
2	Catalytic Converter Front Heat Shield
