Mass Airflow Sensor Replacement

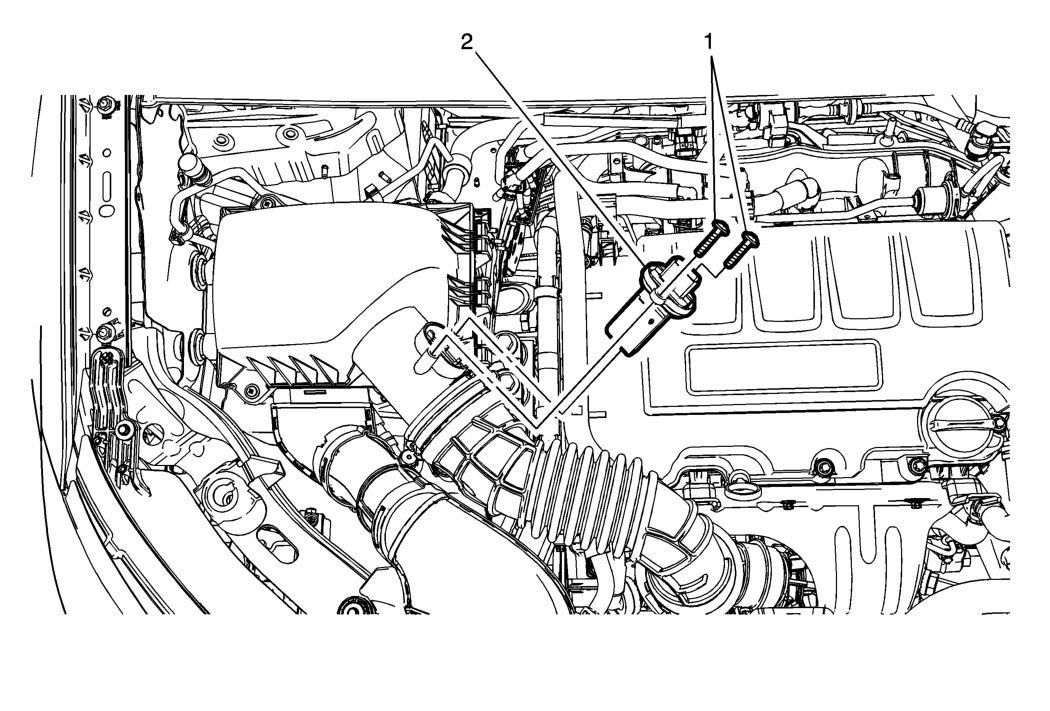

Fig 1: Mass Airflow Sensor
GM2773940Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Mass Airflow Sensor Fasteners (Qty 2)
CAUTION:

Refer to Fastener Caution .


Tighten
5 (44 lb in)
2 Mass Airflow Sensor
Procedure
Disconnect the mass airflow sensor electrical connector.
