Shift Lock Control (Trax with MNK)

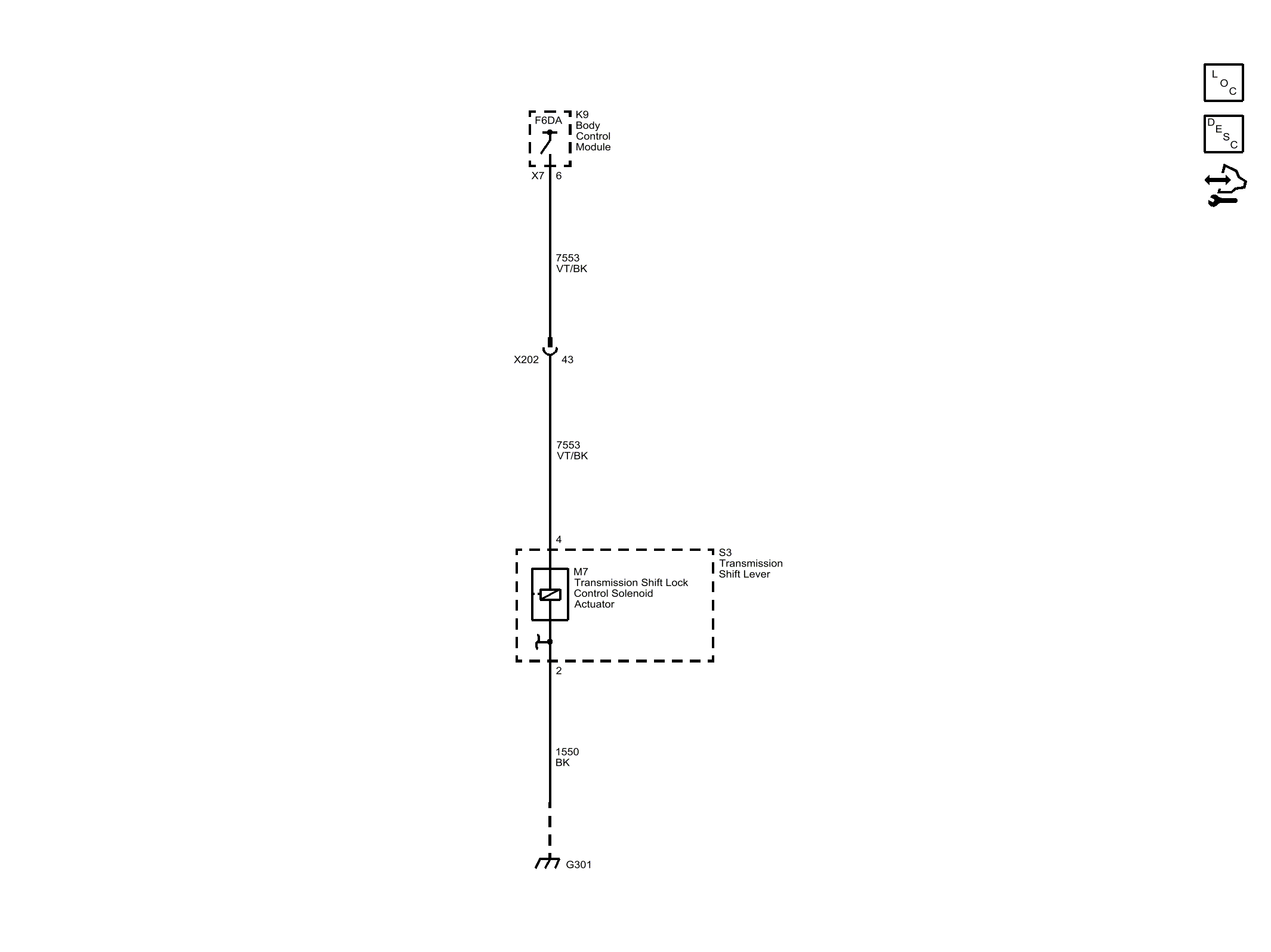

Fig 1: Shift Lock Control (Trax with MNK)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
