Remote Control Door Lock Receiver Replacement (Without BTV)

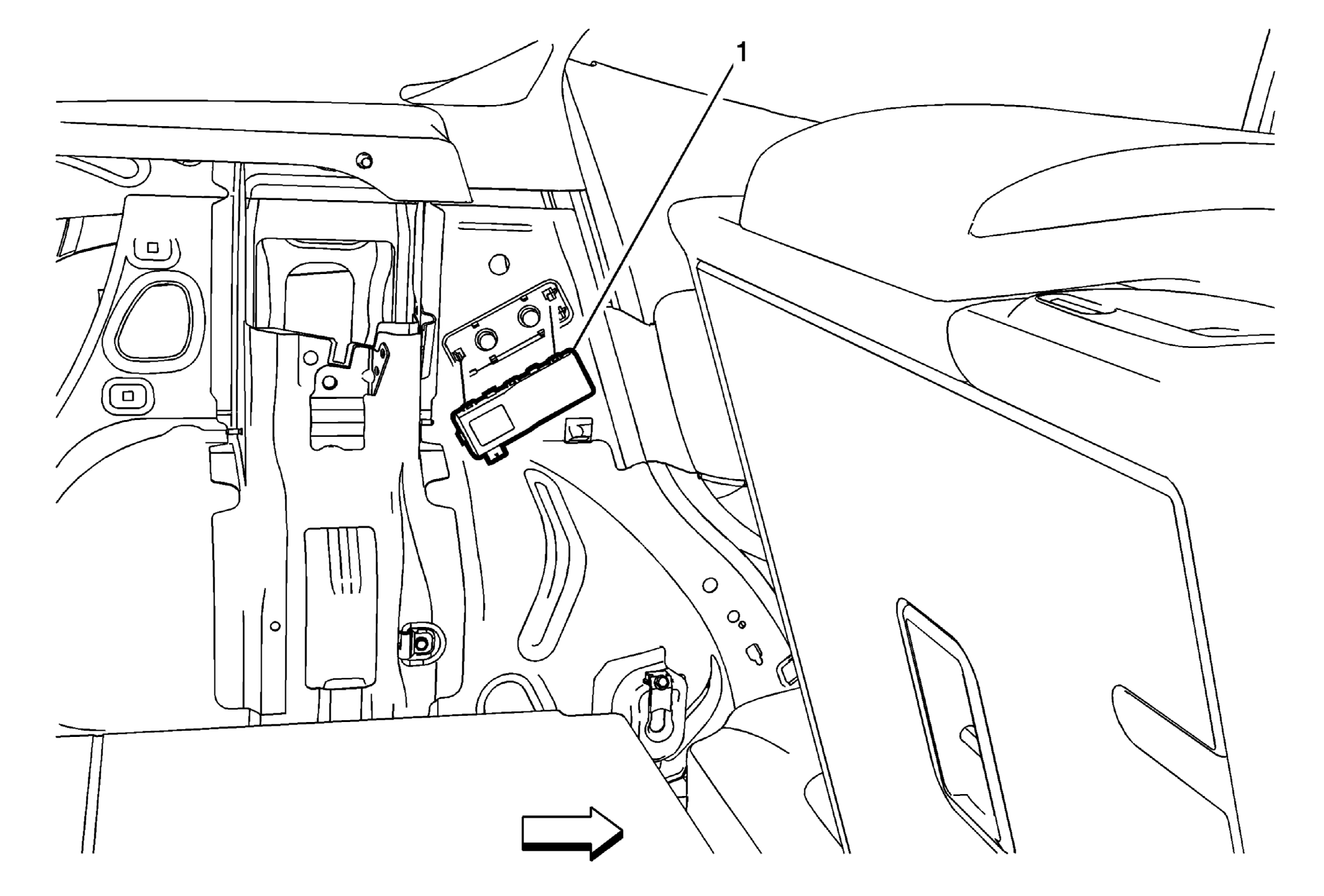

Fig 1: Remote Control Door Lock Receiver (Without BTV)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the quarter lower rear trim panel. Refer to Quarter Lower Rear Trim Panel Replacement .
1	Remote Control Door Lock Receiver Procedure Disconnect the electrical connector. Release module from tabs on bracket.

Callout

Component Name

Preliminary Procedure
Remove the quarter lower rear trim panel. Refer to Quarter Lower Rear Trim Panel Replacement .

Remote Control Door Lock Receiver

Procedure
