Keyless Entry - Active

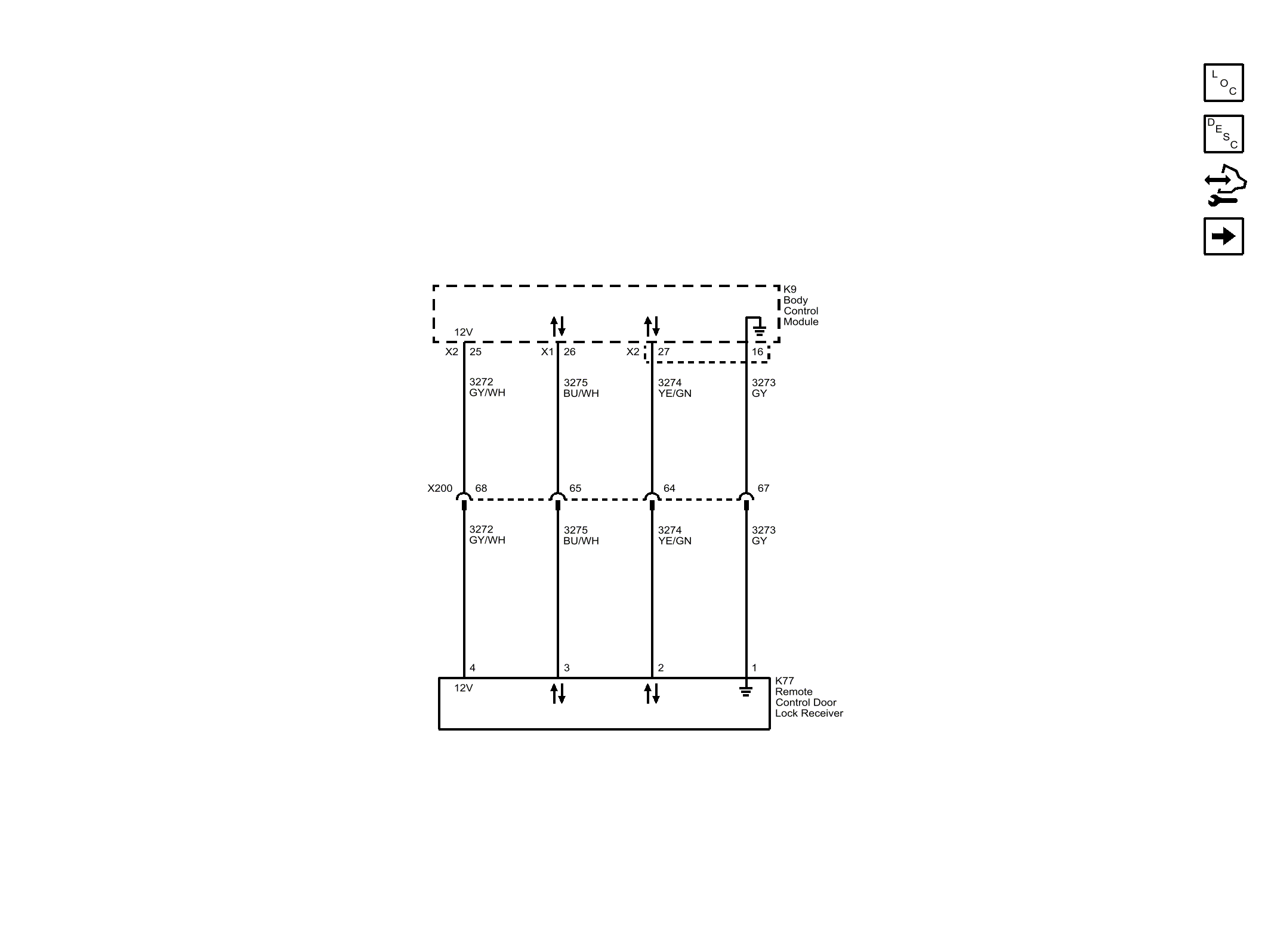

Fig 1: Keyless Entry - Active
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
