Outside Rearview Mirror Replacement

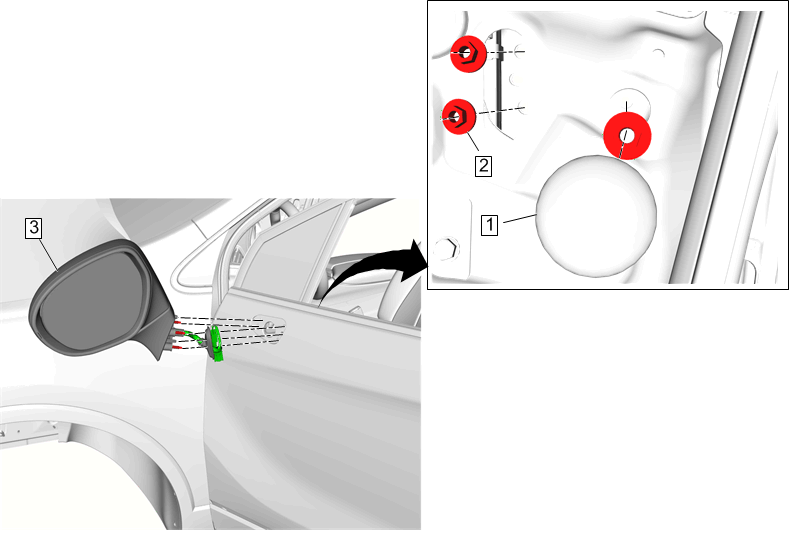

Fig 1: Outside Rearview Mirror

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Side Door Trim Replacement Disconnect the electrical connector. Reposition the oblong access hole plug to gain access to the 2 outside rearview mirror nuts.
1	Front Side Door Window Channel Lower Adjuster Access Hole Plug
2	Outside Rearview Mirror Fastener CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
3	Outside Rearview Mirror
