LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Buick
>>
2016
>>
Envision
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communication System
>>
Schematic Wiring Diagrams
>>
Data Communication Wiring Schematics
>>
MOST Communication Bus
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
MOST Communication Bus

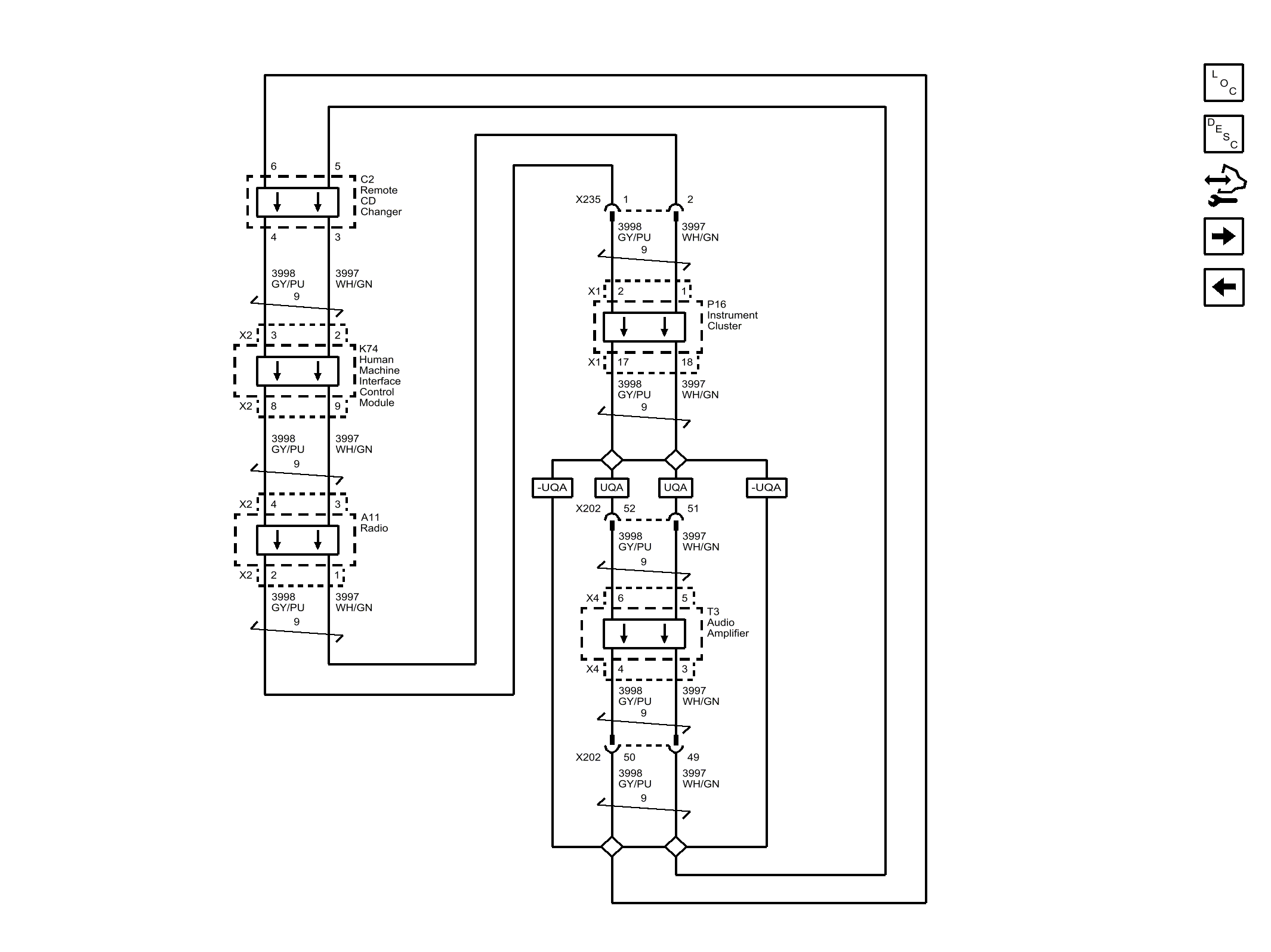

Fig 1: MOST Communication Bus
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
