Object High Speed GMLAN (KSG)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Object High Speed GMLAN (KSG)

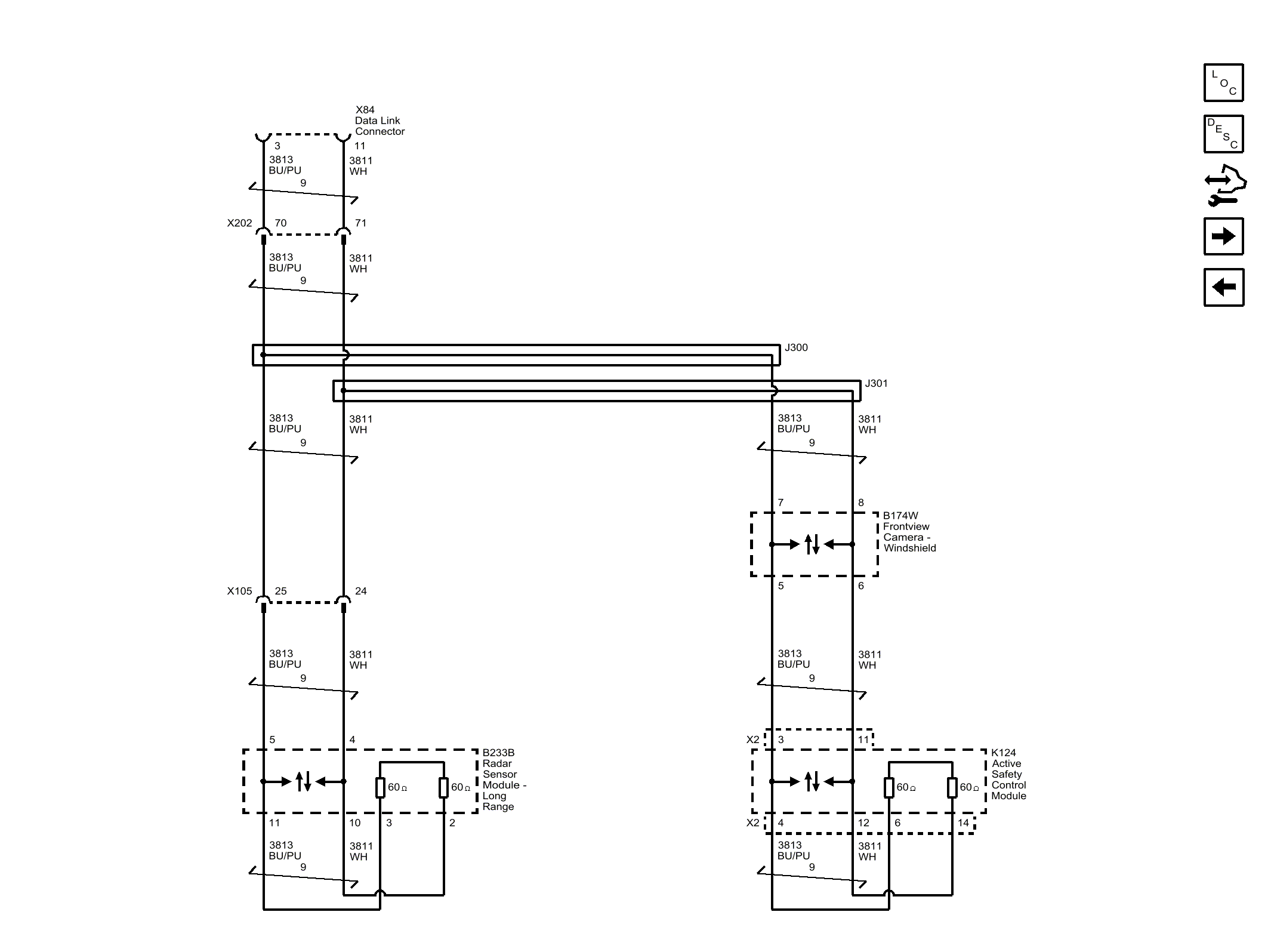

Fig 1: Object High Speed GMLAN (KSG)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
