Power, Ground, and Low Speed GMLAN

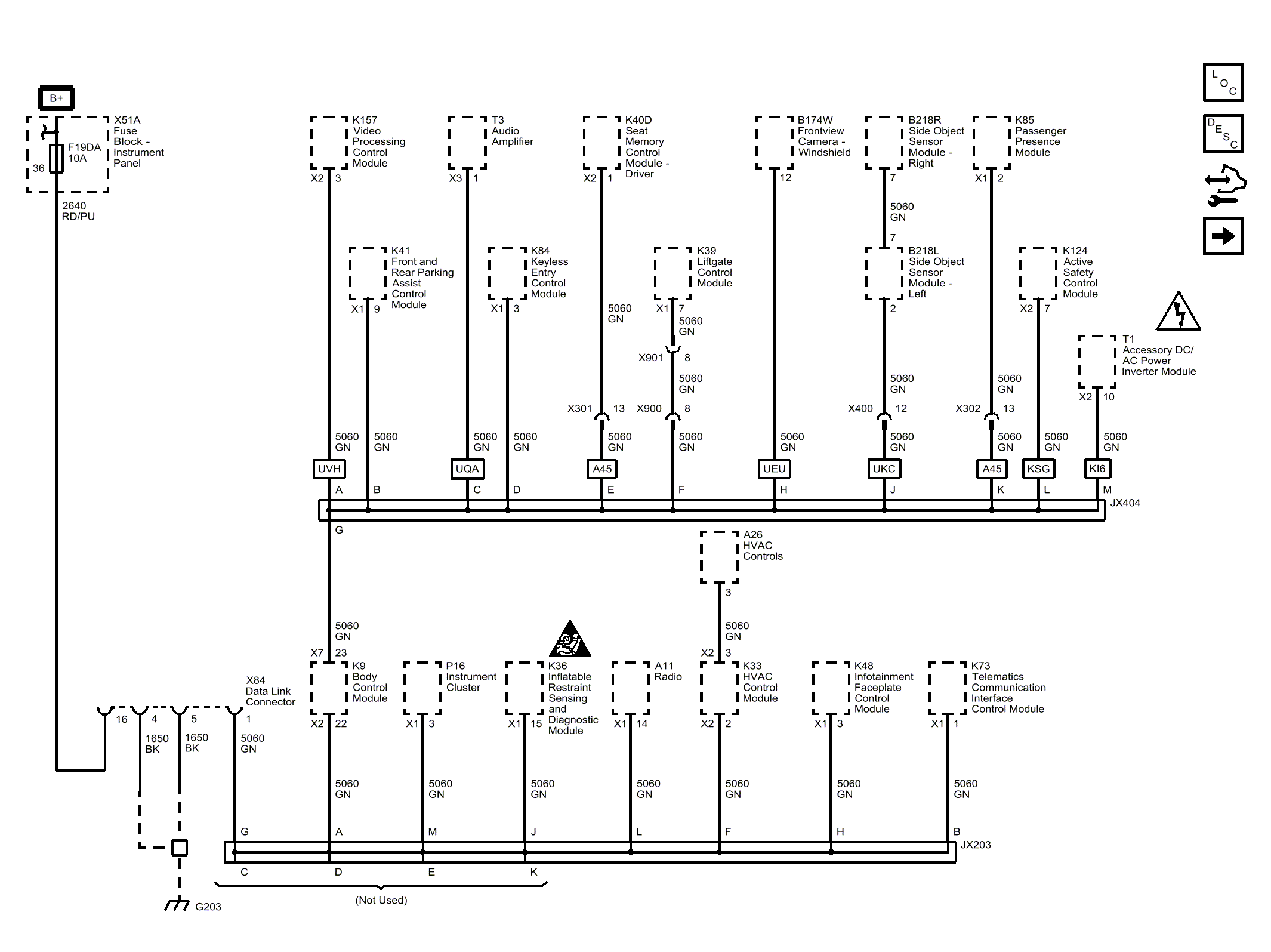

Fig 1: Power, Ground, and Low Speed GMLAN
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
