Forward Range Radar Module Replacement

WARNING: This page is about a different car, the 2016 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

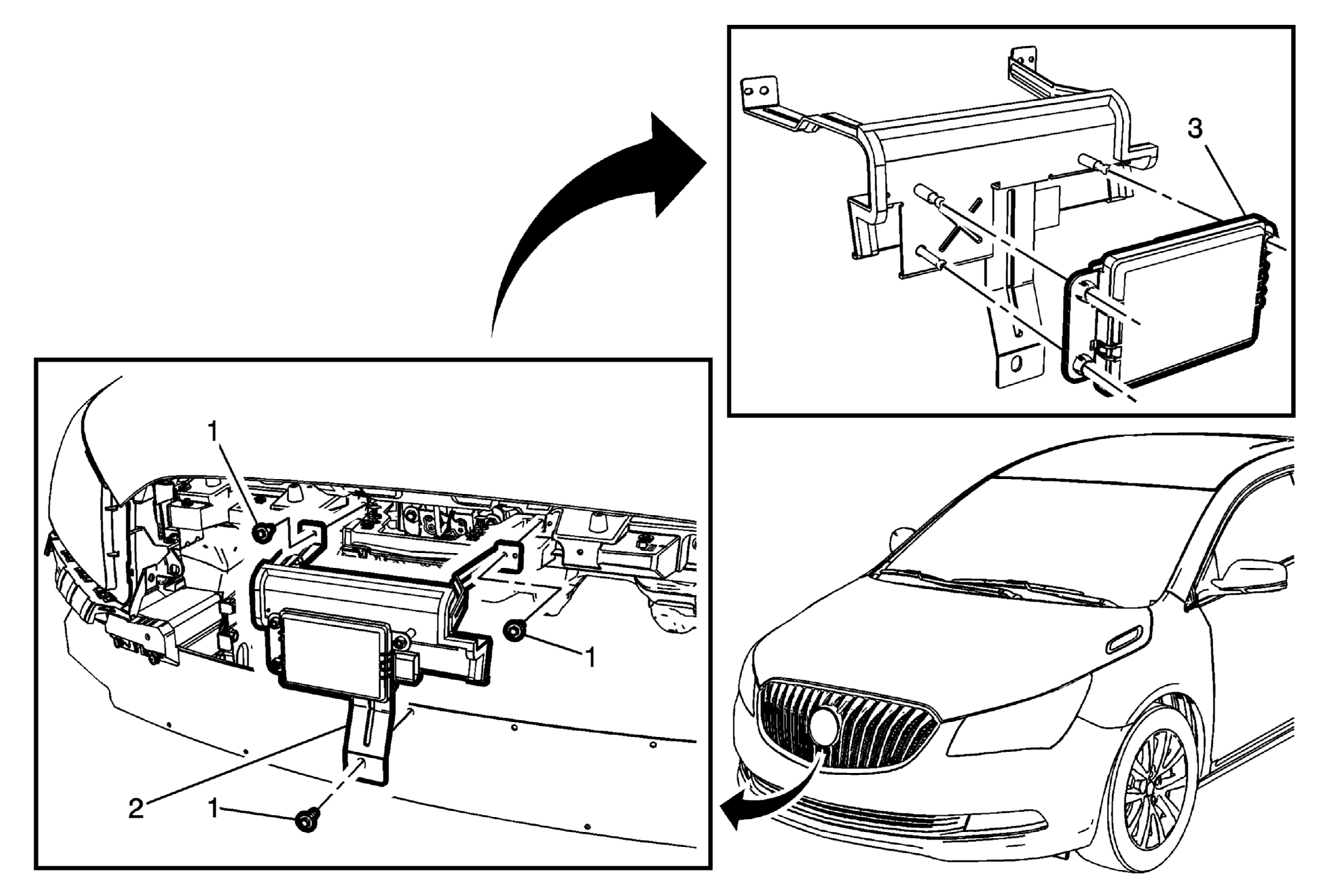

Fig 1: Forward Range Radar Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Forward Range Radar Module Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Forward Range Radar Module Bracket
3	Forward Range Radar Module Procedure Disconnect the electrical connector. Remove the module beginning with the lower ball socket. Carefully lift the module away from bracket using the appropriate tool. For programming and set up, refer to Control Module References .
