Front View Camera Replacement

WARNING: This page is about a different car, the 2016 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

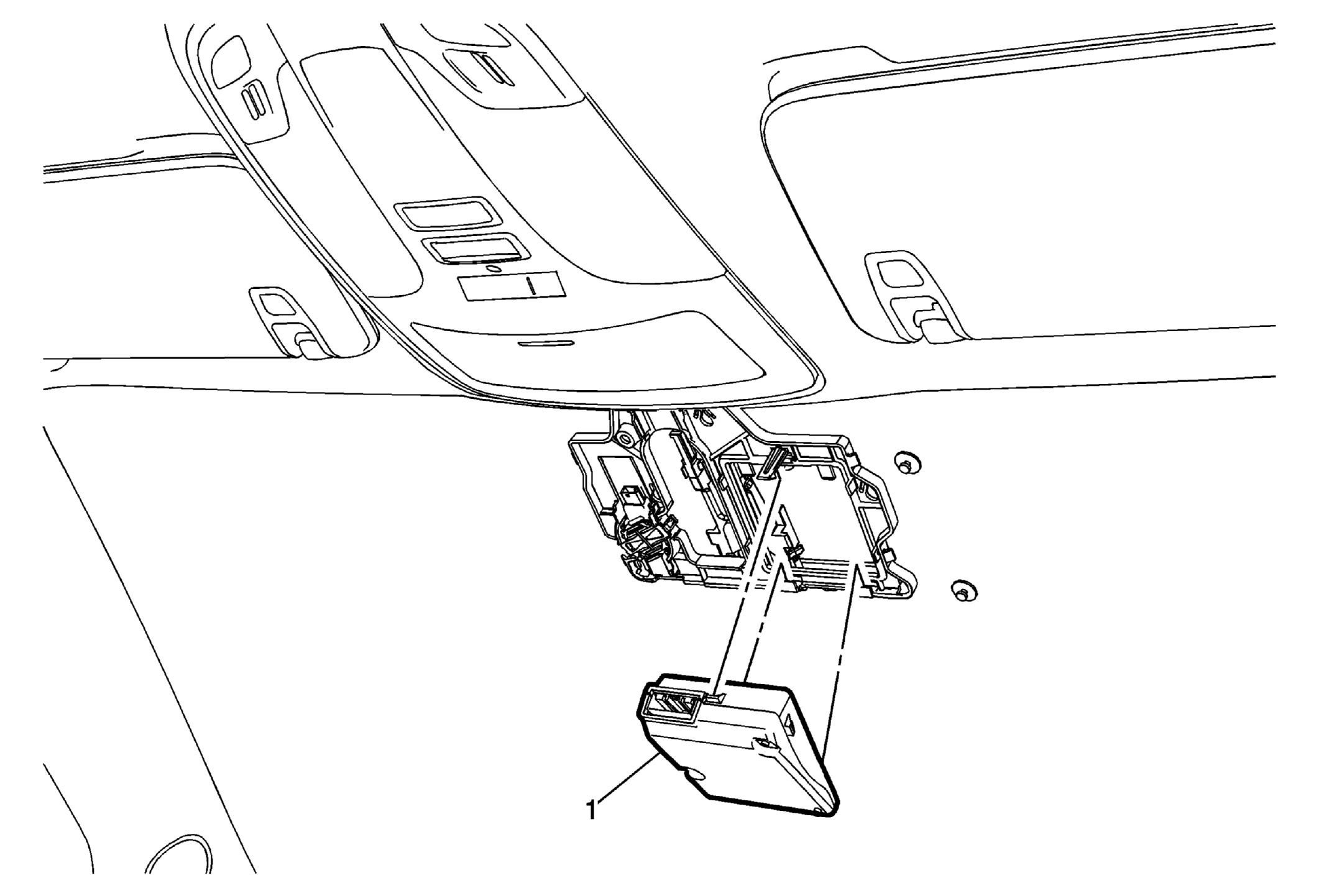

Fig 1: Front View Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the inside rearview mirror wiring harness upper cover. Refer to Inside Rearview Mirror Wiring Harness Upper Cover Replacement . Remove the inside rearview mirror wiring harness lower cover. Refer to Inside Rearview Mirror Wiring Harness Lower Cover Replacement .
1	Front View Camera Procedure Gently depress top center tab on bracket to release camera. Disconnect the electrical connector. After replacement of the front view camera, program the front view camera. Refer to Control Module References .

Callout

Component Name

Preliminary Procedures

Remove the inside rearview mirror wiring harness upper cover. Refer to Inside Rearview Mirror Wiring Harness Upper Cover Replacement .
Remove the inside rearview mirror wiring harness lower cover. Refer to Inside Rearview Mirror Wiring Harness Lower Cover Replacement .

Front View Camera

Procedure

Gently depress top center tab on bracket to release camera.
Disconnect the electrical connector.
After replacement of the front view camera, program the front view camera. Refer to Control Module References .
