Installation Procedure
WARNING: This page is about a different car, the 2016 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.
- Clean the sensor housing mating surface of the fascia with a lint-free rag using a naptha solvent or equivalent.
- Mating surface must be dry before applying adhesion promoter.

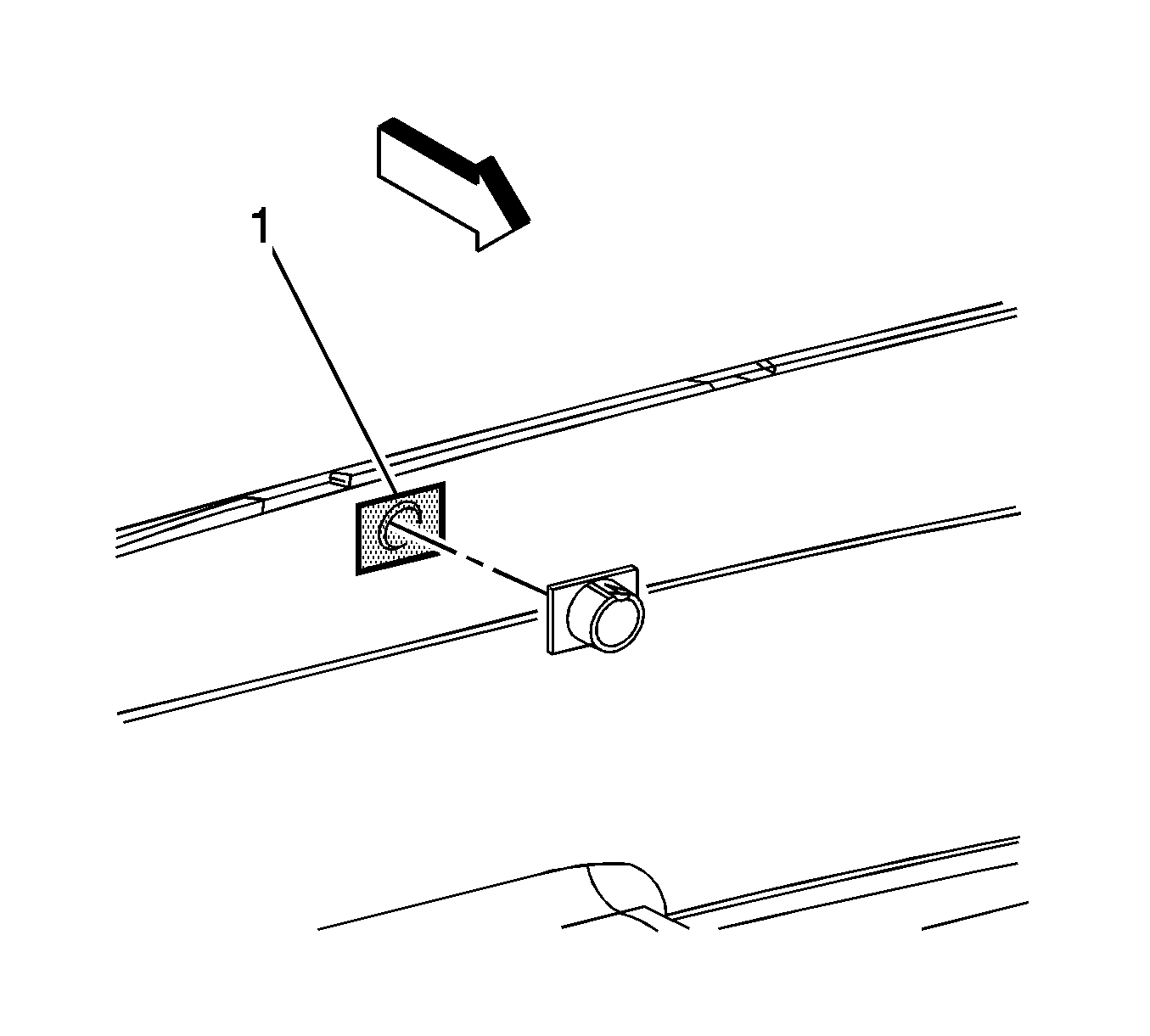

- Apply adhesion promoter 3M Products P/N 06396 or equivalent to the sensor housing mating surface (1) of the fascia.
- Remove the protective paper backing from the sensor housing.

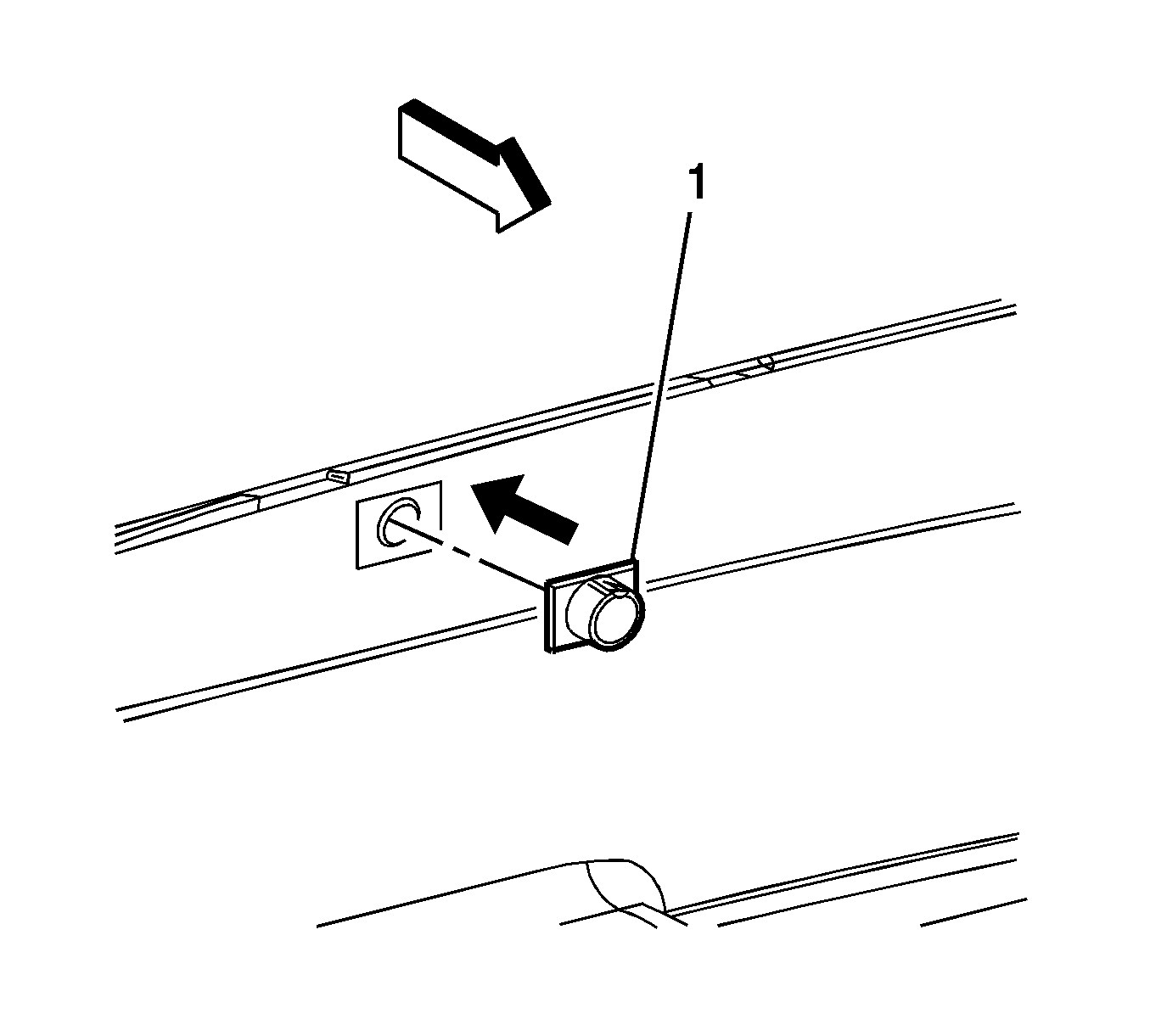

- Position the sensor housing (1) to the fascia.
- Press firmly to secure the sensor housing to the fascia.

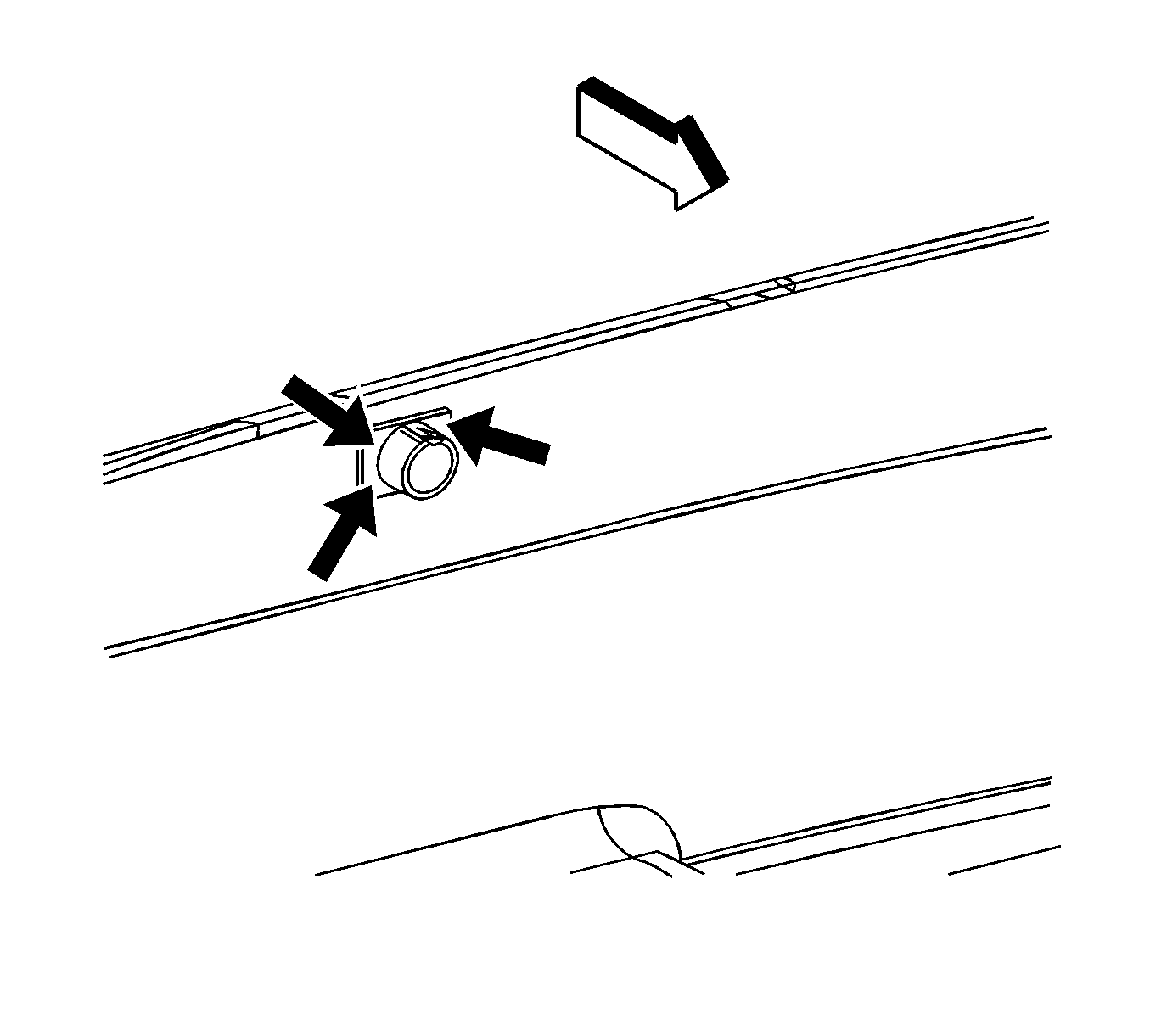

- Install the rear object sensor. Refer to Rear Parking Assist Alarm Sensor Replacement .
- Install the rear fascia. Refer to Rear Bumper Fascia Replacement .
IMPORTANT:
The adhesive and mating surfaces temperature must be between 19-43°C (66-110°F).
IMPORTANT:
Adhesion promoter MUST be used prior to installing the new sensor housing.
