Rearview Camera Image Display Module Replacement

WARNING: This page is about a different car, the 2016 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

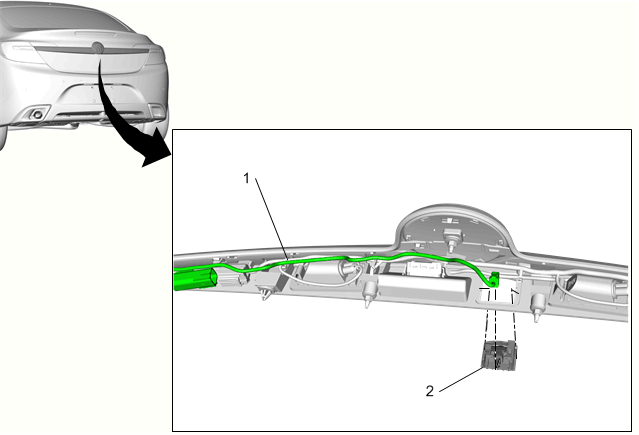

Fig 1: Rearview Camera Image Display Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear closure center applique. Refer to Rear Closure Center Applique Replacement .
1	Rearview Camera Harness
2	Rearview Camera Procedure Depress the clip fingers and push outward to remove the rearview camera from the applique. Disconnect the rear view camera harness from the new camera. Install the new camera and bracket to applique. Connect the rearview camera harness to the camera.

Callout

Component Name

Preliminary Procedure
Remove the rear closure center applique. Refer to Rear Closure Center Applique Replacement .

Rearview Camera Harness

Rearview Camera

Procedure

Depress the clip fingers and push outward to remove the rearview camera from the applique.
Disconnect the rear view camera harness from the new camera.
Install the new camera and bracket to applique.
Connect the rearview camera harness to the camera.
