Side Object Sensor Replacement

WARNING: This page is about a different car, the 2016 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

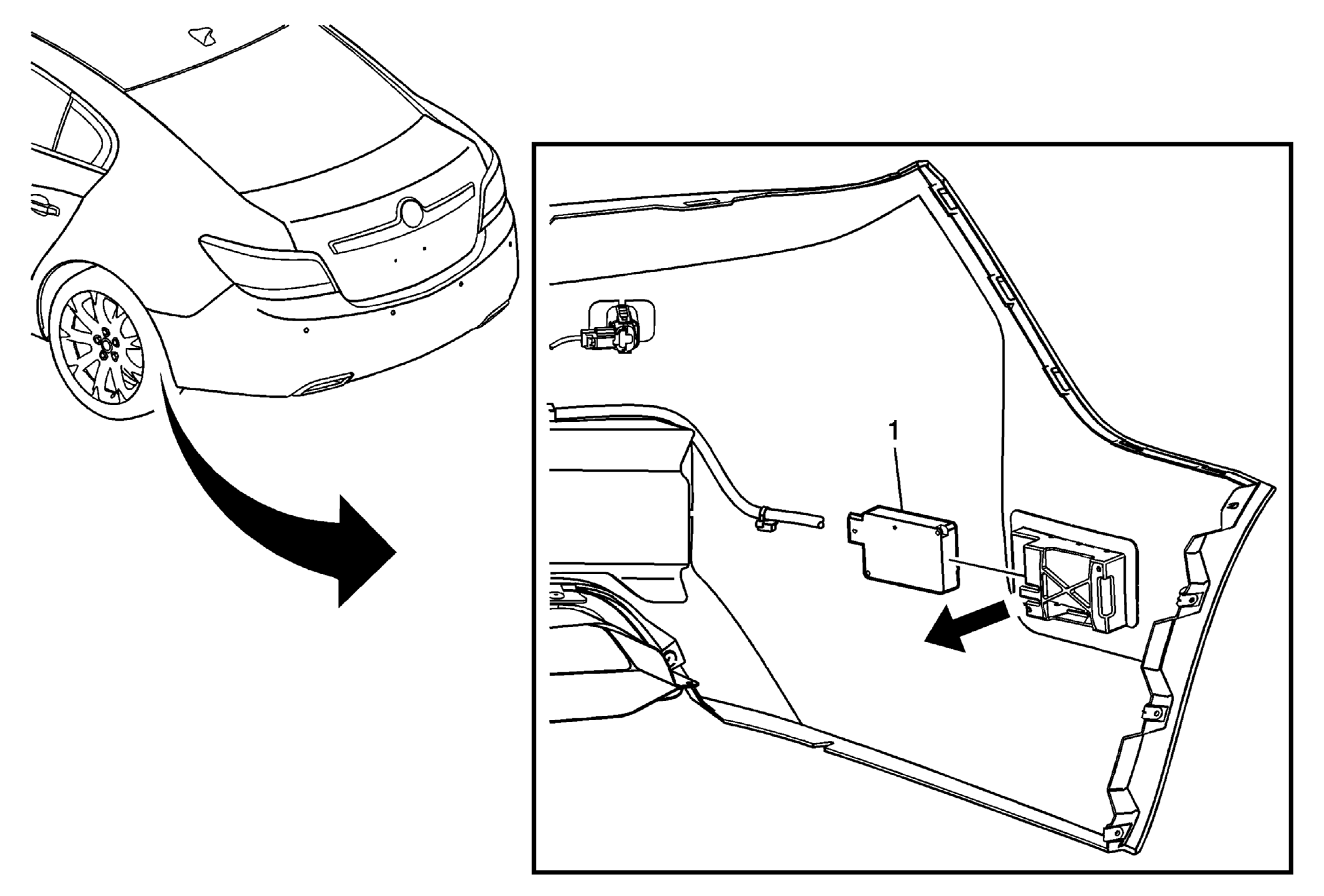

Fig 1: Side Object Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
1	Side Object Sensor Assembly Procedure Disconnect the side object sensor electrical connector. Release the locking retainer from the side object sensor bracket. For programming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .

Side Object Sensor Assembly

Procedure

Disconnect the side object sensor electrical connector.
Release the locking retainer from the side object sensor bracket.
For programming and set up, refer to Control Module References .
