Ignition Lock Key Transmitter Antenna Replacement - Instrument Panel

WARNING: This page is about a different car, the 2015 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

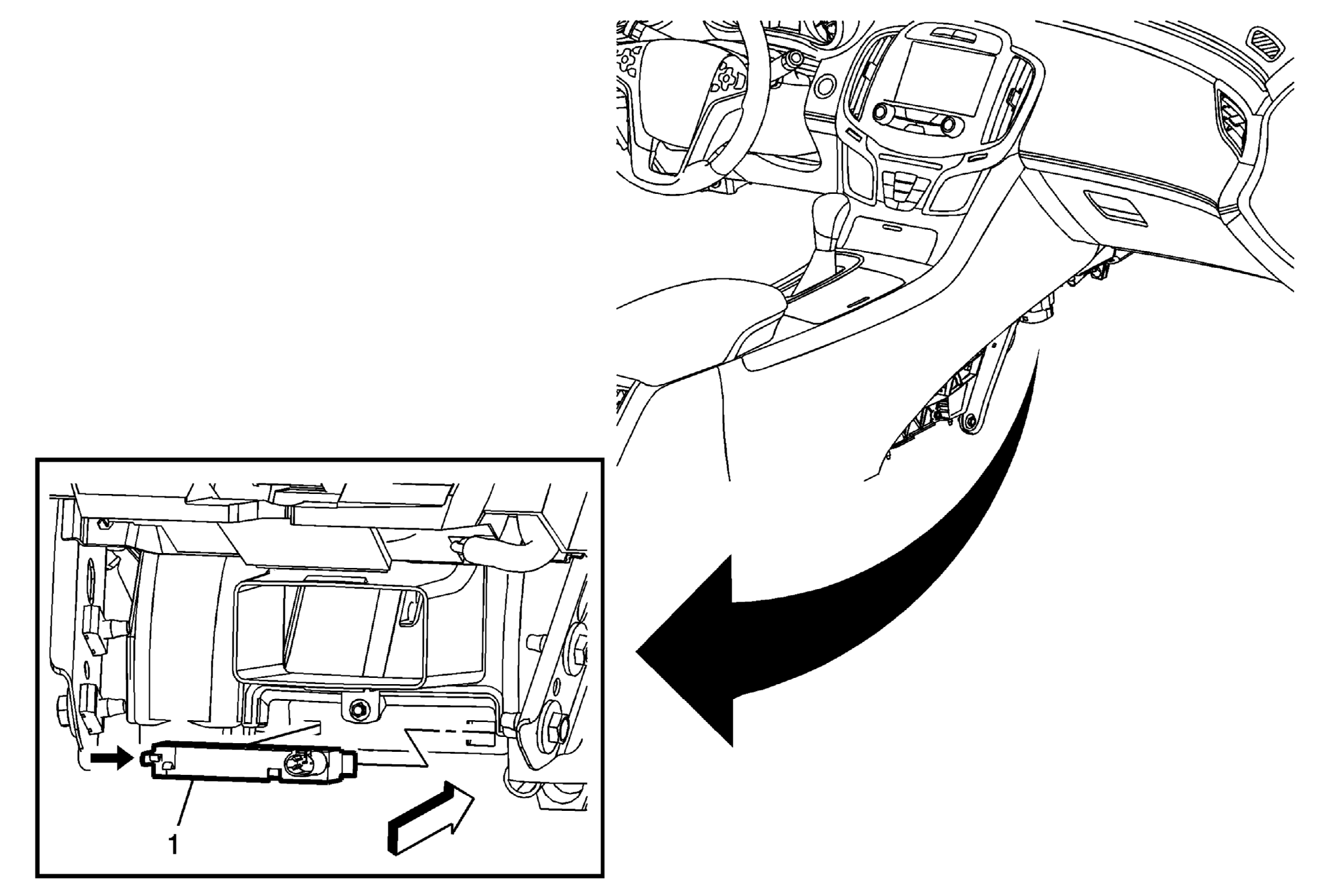

Fig 1: Ignition Lock Key Transmitter Antenna - Instrument Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console extension cover - right side. Refer to Front Floor Console Extension Panel Replacement - Right Side . Pull back the front floor panel carpet as needed. Refer to Front Floor Panel Carpet Replacement .
1	Ignition Lock Key Transmitter Antenna- Instrument Panel Procedure Unsnap to release the Ignition Lock Key Transmitter Antenna. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure

Remove the front floor console extension cover - right side. Refer to Front Floor Console Extension Panel Replacement - Right Side .
Pull back the front floor panel carpet as needed. Refer to Front Floor Panel Carpet Replacement .

Ignition Lock Key Transmitter Antenna- Instrument Panel

Procedure

Unsnap to release the Ignition Lock Key Transmitter Antenna.
Disconnect the electrical connector.
