Keyless Entry Control Module Bracket Replacement
WARNING: This page is about a different car, the 2015 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

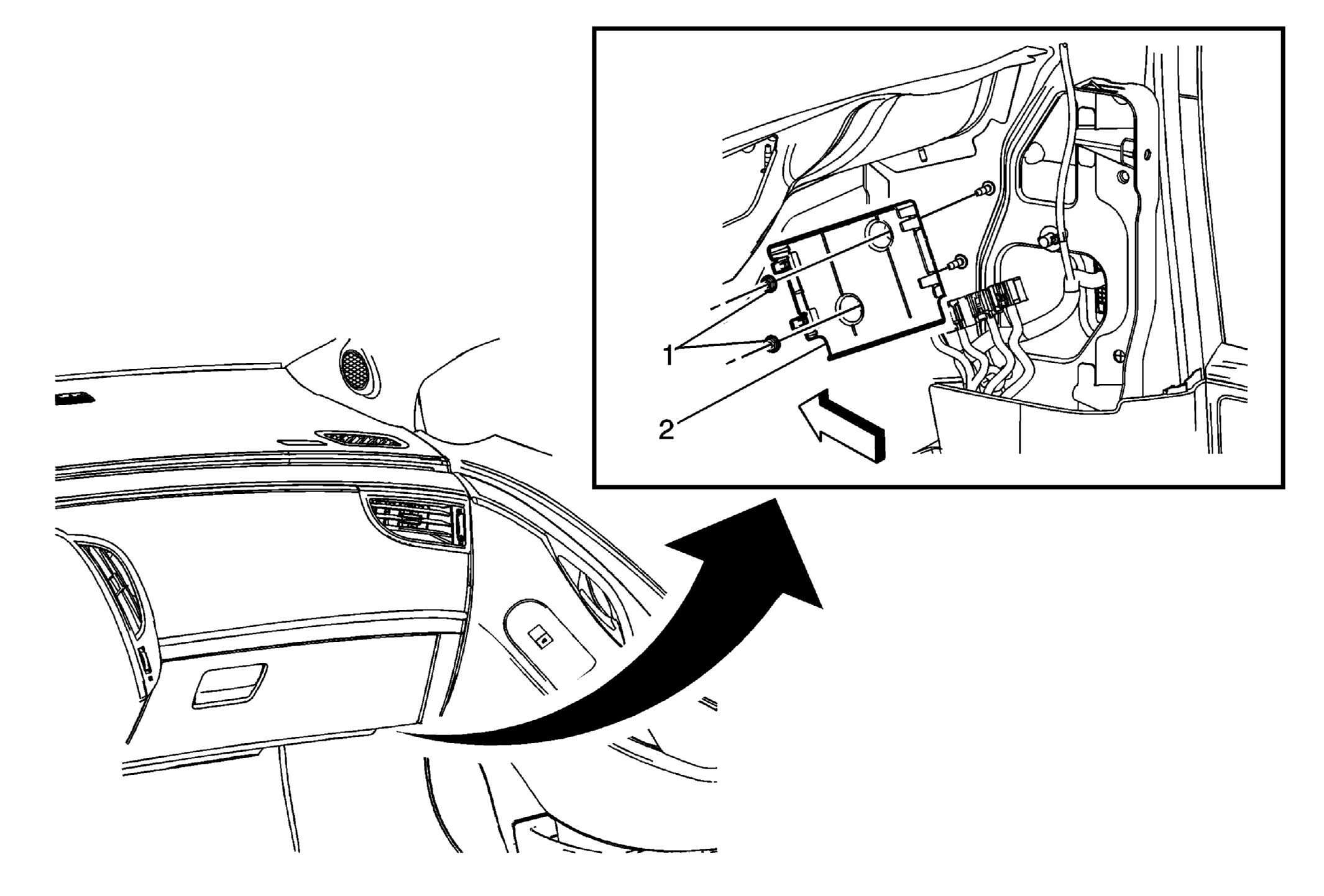

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the keyless entry control module. Refer to Keyless Entry Control Module Replacement . |
|
| 1 | Keyless Entry Control Module Bracket Nut (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Keyless Entry Control Module Bracket |
