Keyless Entry Control Module Replacement

WARNING: This page is about a different car, the 2015 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

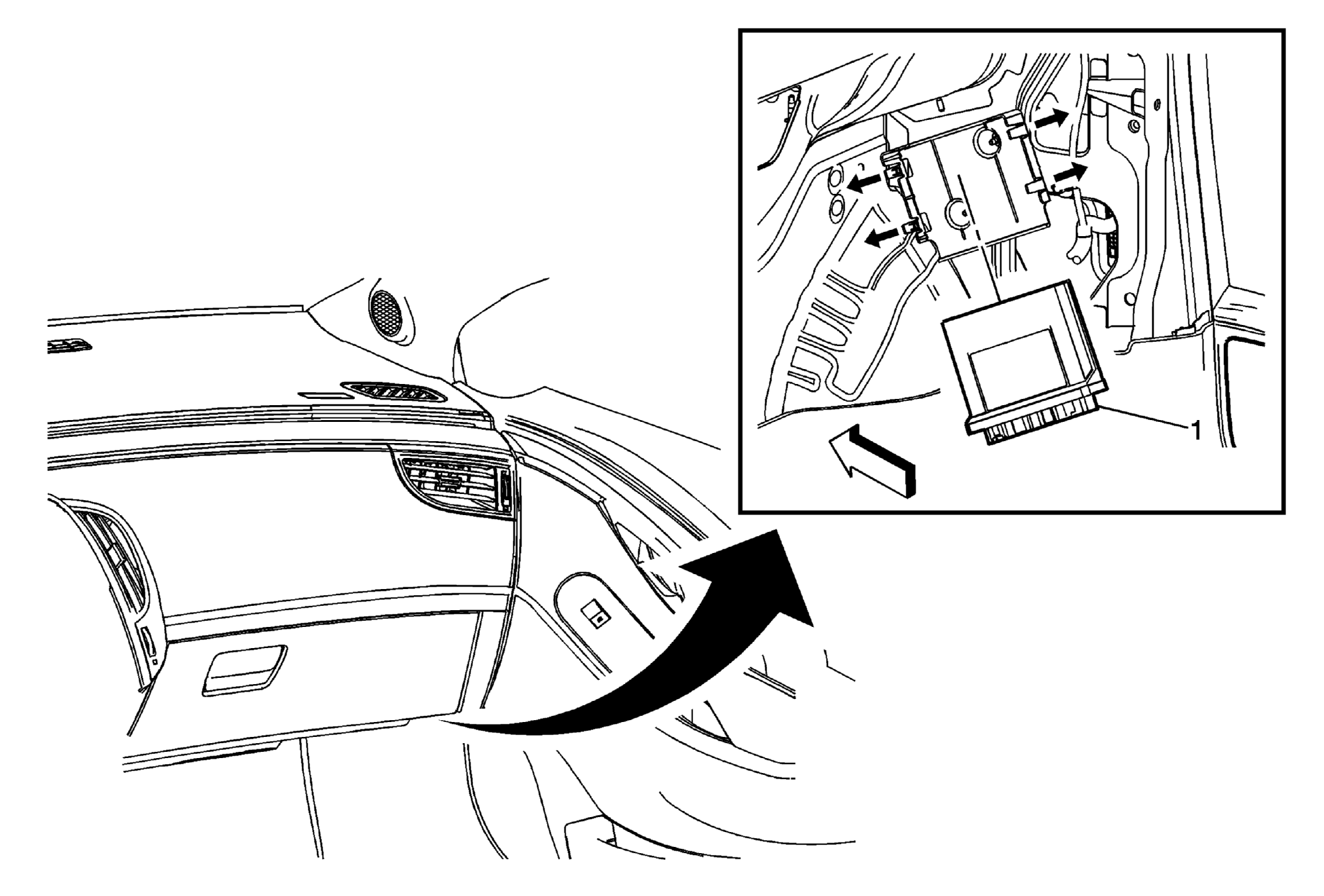

Fig 1: Keyless Entry Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Right Side .
1	Keyless Entry Control Module Procedure Disconnect the wiring harness connectors. Unsnap the module from the bracket. For programming and set up information, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the instrument panel insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Right Side .

Keyless Entry Control Module

Procedure

Disconnect the wiring harness connectors.
Unsnap the module from the bracket.
For programming and set up information, refer to Control Module References .
