Remote Control Door Lock Receiver Replacement

WARNING: This page is about a different car, the 2015 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

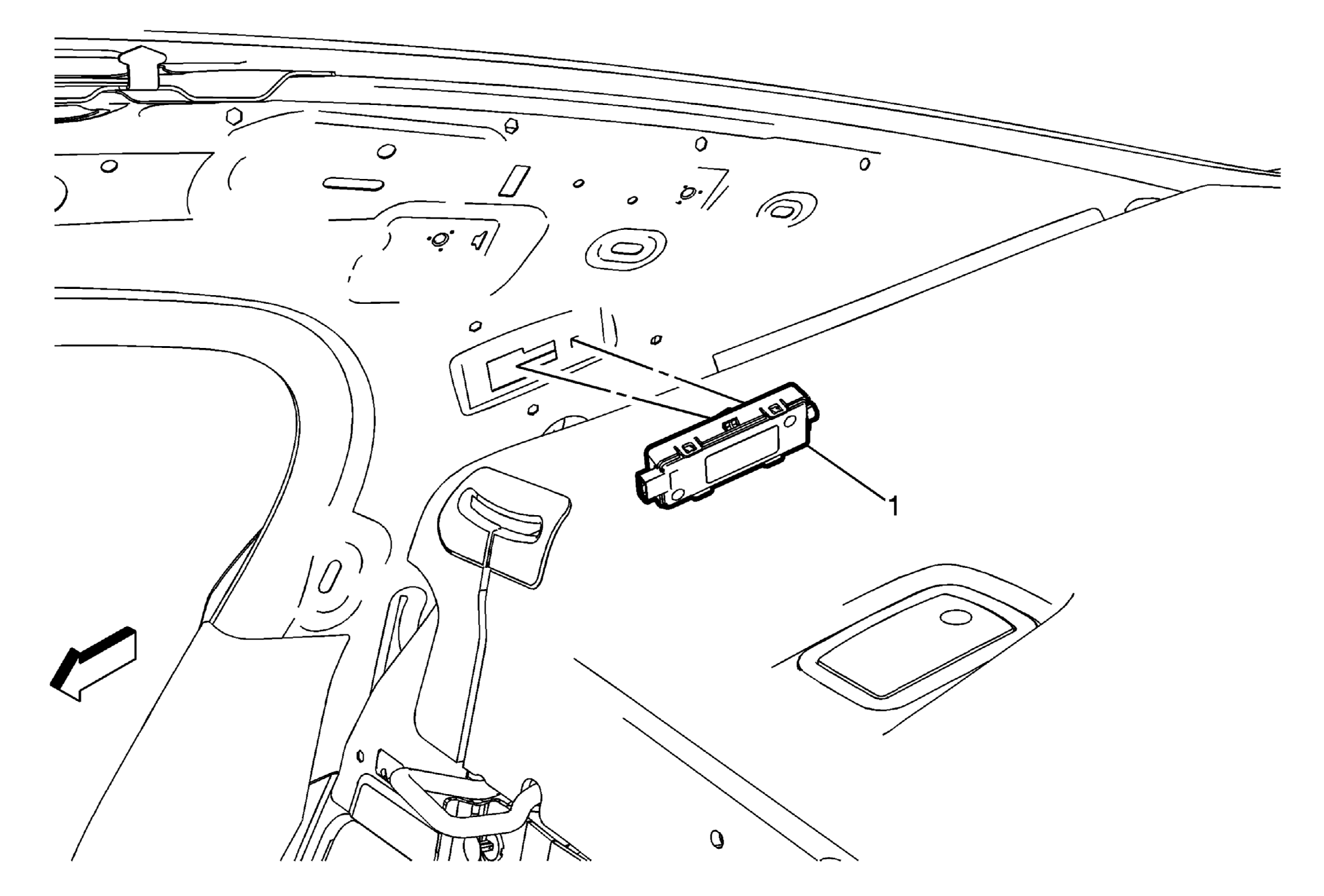

Fig 1: Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the body lock pillar upper trim panel. Refer to Body Lock Pillar Upper Trim Panel Replacement .
1	Remote Control Door Lock Receiver Procedure Disconnect the antenna cable connector. Disconnect the electrical connector. Slide the receiver rearward to release. For programming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the body lock pillar upper trim panel. Refer to Body Lock Pillar Upper Trim Panel Replacement .

Remote Control Door Lock Receiver

Procedure

Disconnect the antenna cable connector.
Disconnect the electrical connector.
Slide the receiver rearward to release.
For programming and set up, refer to Control Module References .
