Shift Lock Control

WARNING: This page is about a different car, the 2016 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

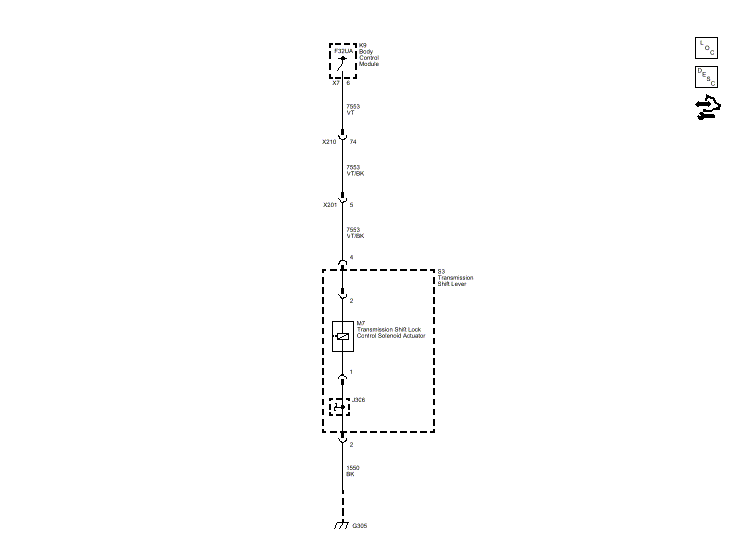

Fig 1: Shift Lock Control
GM4113360Courtesy of GENERAL MOTORS COMPANY
