Steering Gear Heat Shield Replacement

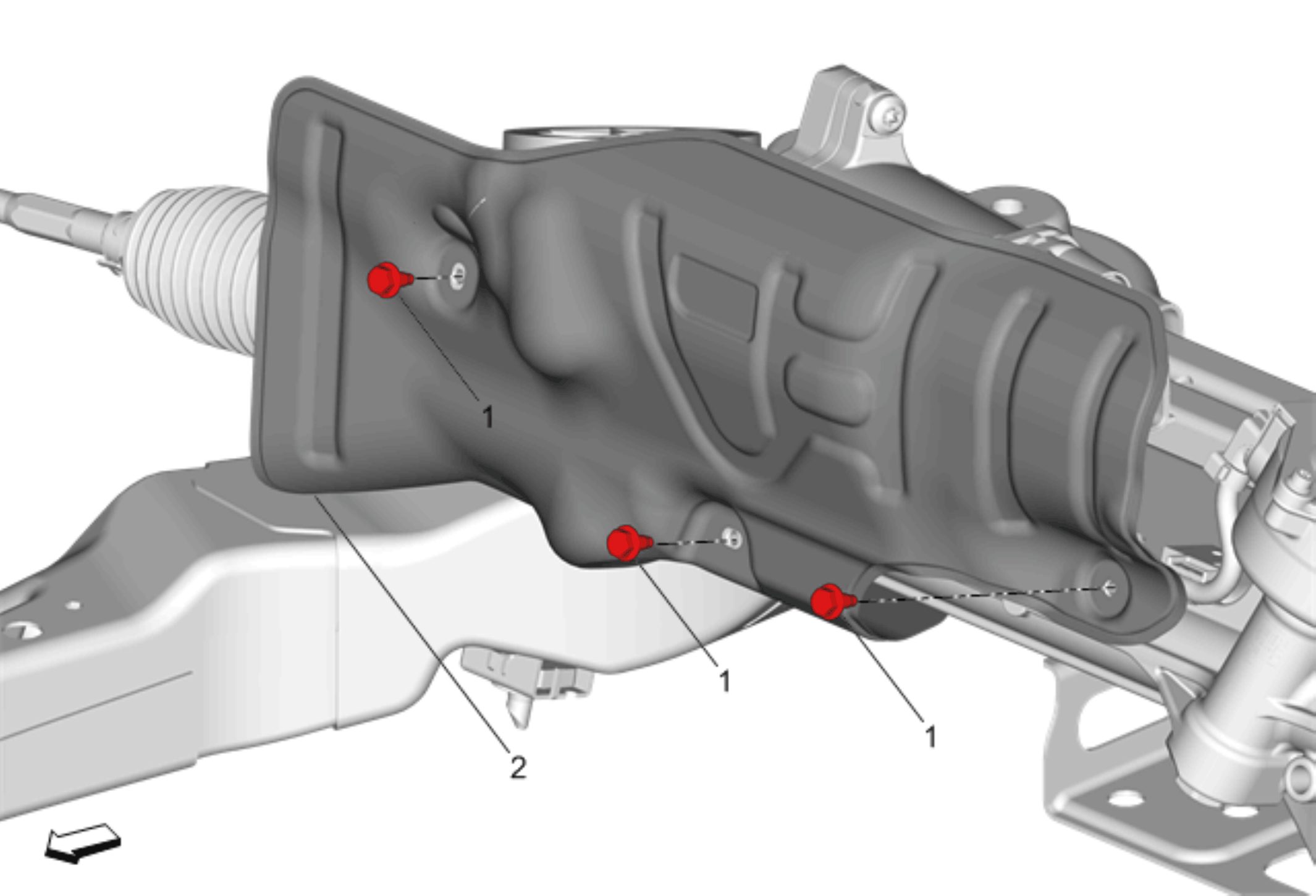

Fig 1: Steering Gear Boot

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Steering Column Dash Inner Seal Replacement Lower the drivetrain and front suspension cradle. Drivetrain and Front Suspension Cradle Replacement
1	Steering Gear Heat Shield Bolt CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Steering Gear Heat Shield

Callout

Component Name

Preliminary Procedures

Steering Gear Heat Shield Bolt

CAUTION:

Tighten
9 N.m (80 lb in)

Steering Gear Heat Shield
