Linear Interconnect Network (LIN)

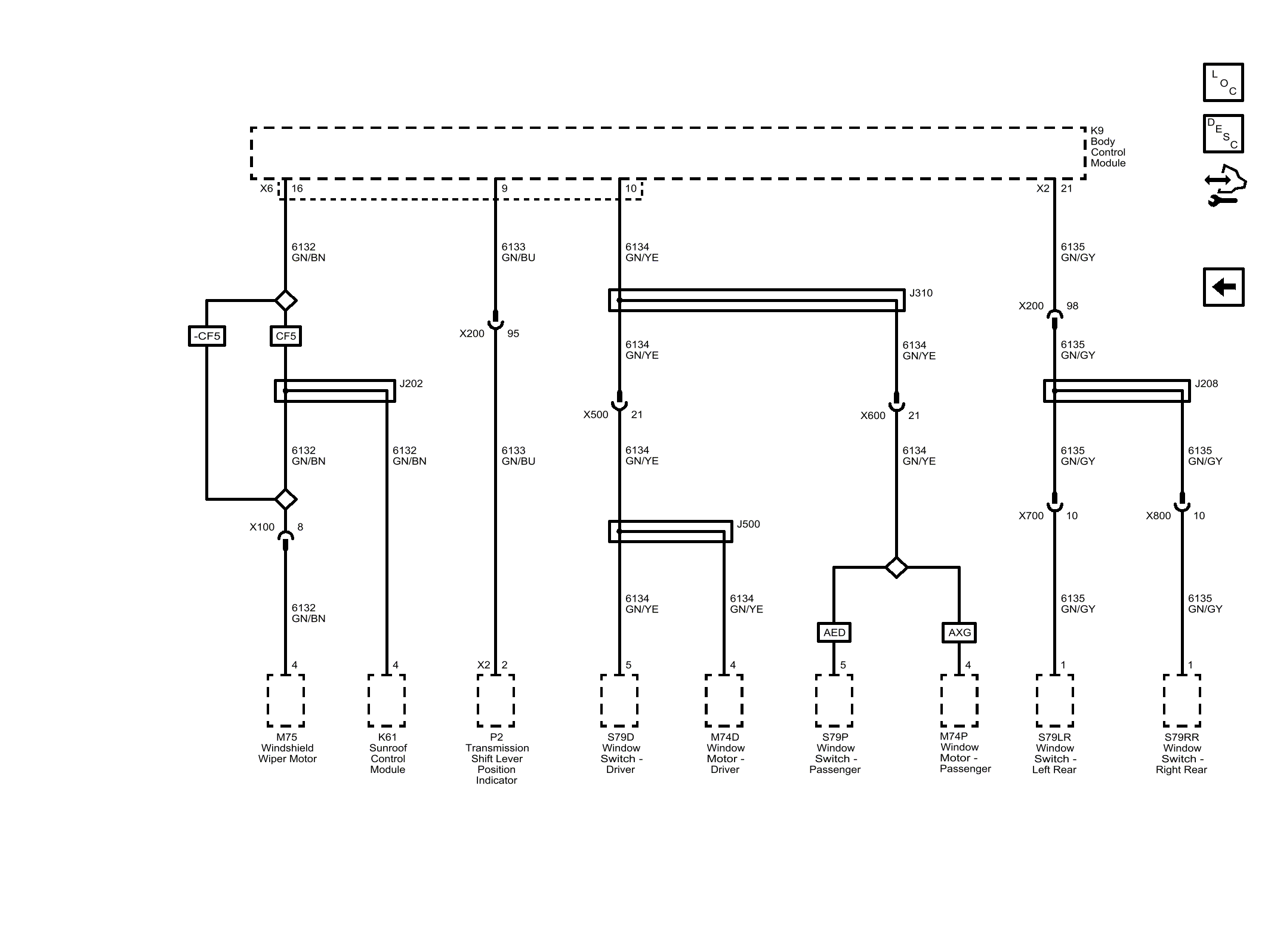

Fig 1: Linear Interconnect Network (LIN)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
